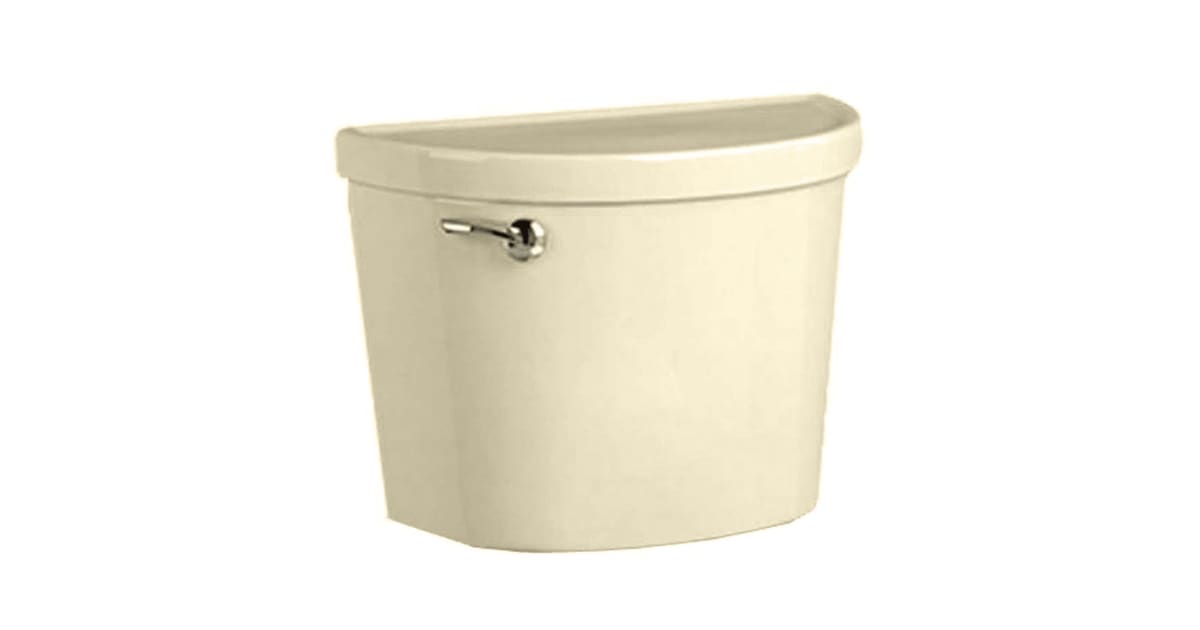

American Standard Champion Pro 1.6 Gpf

The American Standard Champion Pro 1.6 GPF toilet is known for its powerful flush, but like any mechanical device, it can sometimes experience issues. One of the most common frustrations homeowners face is a toilet that runs constantly, or ghost flushes intermittently. This not only wastes water, increasing your bill, but can also be incredibly annoying. Before calling a plumber, let's walk through some simple troubleshooting steps you can take to diagnose and potentially fix the problem yourself.

Diagnosing the Running Toilet

Before you start taking things apart, let's try to pinpoint the source of the leak. A running toilet usually indicates water is escaping from the tank into the bowl. Here's how to investigate:

Step 1: Visual Inspection

First, simply look. Observe the water level inside the tank. Is it significantly higher than the overflow tube (the vertical tube with a small opening at the top)? If so, the fill valve might be the culprit. Also, check for any visible drips or streams of water inside the tank, paying close attention to the flapper valve (the rubber or plastic piece that seals the flush valve opening at the bottom of the tank) and the fill valve itself.

Step 2: The Food Coloring Test

This is a simple yet effective way to determine if water is leaking past the flapper. Add a few drops of food coloring (any color will do, but darker colors are more visible) to the toilet tank, making sure not to flush. Wait for about 20-30 minutes. After the wait, check the toilet bowl. If you see colored water in the bowl, it means water is seeping past the flapper, indicating a leak.

Step 3: Listen Carefully

Sometimes, the leak isn't visually obvious, but you might be able to hear it. Listen carefully to the toilet, both inside and outside the tank. Do you hear a hissing sound, suggesting water is escaping from a loose connection or a faulty fill valve? A subtle gurgling sound could also indicate a leak past the flapper.

DIY Fixes: Addressing the Common Culprits

Once you've identified the potential cause of the running toilet, let's try some DIY solutions. Remember to turn off the water supply to the toilet before attempting any repairs. The shut-off valve is usually located near the base of the toilet, on the wall. Turn it clockwise until it's fully closed.

Fix #1: Adjusting the Fill Valve

If the water level in the tank is too high, the fill valve needs adjustment. The American Standard Champion Pro typically uses a fill valve that has an adjustable float. The float controls when the valve shuts off the water supply.

Here's how to adjust it:

Locate the Adjustment Mechanism: Look for a screw, clip, or dial on the fill valve. The exact mechanism varies slightly depending on the specific model, but it's usually fairly intuitive.
Lower the Float: If it's a screw, turn it counter-clockwise to lower the float. If it's a clip or dial, adjust it downwards. The goal is to lower the water level in the tank.
Flush and Observe: Turn the water supply back on gradually. Let the tank fill, and observe the water level. It should stop about an inch below the top of the overflow tube. If the water level is still too high, repeat the adjustment process.
Check for Leaks: Once the water level is correct, flush the toilet several times to ensure the fill valve shuts off properly and there are no leaks around the valve itself.

Sometimes, the fill valve itself might be faulty. If adjusting the float doesn't solve the problem, consider replacing the fill valve entirely. Replacement fill valves are relatively inexpensive and easy to install.

Fix #2: Replacing or Cleaning the Flapper

A worn or damaged flapper is a frequent cause of running toilets. Over time, the rubber can deteriorate, become warped, or accumulate mineral deposits, preventing a tight seal.

Here's how to address the flapper:

Inspect the Flapper: Carefully examine the flapper for any signs of damage, such as cracks, tears, or warping. Also, check for mineral buildup or debris.
Clean the Flapper (If Possible): If the flapper is simply dirty, try cleaning it with a soft brush and a mild cleaning solution (like vinegar diluted with water). Avoid harsh chemicals that could damage the rubber. Rinse the flapper thoroughly.
Replace the Flapper (If Necessary): If the flapper is damaged or cleaning doesn't work, replace it. Purchase a replacement flapper specifically designed for the American Standard Champion Pro, as generic flappers may not create a proper seal.
Install the New Flapper: Disconnect the chain from the old flapper and remove the old flapper from the flush valve. Install the new flapper, ensuring it's properly seated and aligned with the flush valve opening. Reconnect the chain, making sure it has a little slack (about ½ inch) so the flapper can seal properly.
Test the Toilet: Turn the water supply back on and flush the toilet several times to check for leaks. Adjust the chain length if needed to ensure a complete seal.

Fix #3: Adjusting the Flapper Chain

Sometimes, the problem isn't the flapper itself, but the chain that connects it to the flush lever. If the chain is too long, it can get caught under the flapper, preventing it from sealing properly. If the chain is too short, it might not allow the flapper to fully open during a flush.

Here's how to adjust the chain:

Check the Chain Length: The chain should have a slight amount of slack (about ½ inch) when the flapper is closed.
Adjust the Chain: If the chain is too long, remove a link or two. If it's too short, add a link (you might need to purchase a replacement chain).
Test the Toilet: Flush the toilet several times to ensure the flapper opens and closes properly and that there are no leaks.

Fix #4: Inspecting the Flush Valve Seat

The flapper seals against the flush valve seat, which is the smooth, circular surface at the bottom of the tank. If the seat is corroded, cracked, or has mineral deposits, it can prevent the flapper from creating a tight seal. This is less common, but worth checking.

Here's how to inspect and (potentially) clean the seat:

Drain the Tank: Turn off the water supply and flush the toilet to empty the tank.
Inspect the Seat: Carefully examine the flush valve seat for any signs of damage or buildup.
Clean the Seat (If Possible): If there's mineral buildup, try gently cleaning the seat with a soft cloth and a mild cleaning solution (like vinegar diluted with water). Be very careful not to scratch the seat, as this could worsen the problem. A Scotch-Brite pad very gently can sometimes work, but test in an inconspicuous area first.
Assess the Damage: If the seat is severely corroded or cracked, it may be necessary to replace the entire flush valve assembly. This is a more complex repair that might be best left to a professional.

When to Call a Professional

While many running toilet issues can be resolved with these simple DIY fixes, there are situations where professional help is needed. Here are some red flags:

Cracked Tank or Bowl: If you notice any cracks in the tank or bowl, do not attempt any repairs yourself. This is a serious issue that can lead to leaks and potential water damage. Call a plumber immediately.
Persistent Leaks Despite Repairs: If you've tried all the DIY fixes mentioned above and the toilet is still running, there might be a more complex problem with the plumbing or the toilet's internal components.
Difficulty Accessing Components: If you're having trouble accessing the fill valve, flapper, or other components, or if you're uncomfortable working with plumbing, it's best to call a professional.
Flush Valve Replacement: Replacing the entire flush valve assembly is a more complex repair that requires some plumbing knowledge and experience. If you're not comfortable with this type of repair, it's best to call a plumber.
Signs of Mold or Water Damage: If you notice any signs of mold or water damage around the toilet, it's important to address the problem quickly to prevent further damage. A plumber can help you identify the source of the leak and make the necessary repairs.
Toilet is Very Old: If the toilet is very old and has persistent problems, it might be more cost-effective to replace the entire toilet with a newer, more efficient model. A plumber can help you choose the right toilet for your needs and install it properly.

Specifically regarding the American Standard Champion Pro: If you suspect an issue with the Siphon Jet or the EverClean surface impacting flushing performance (though not necessarily causing a running toilet, but impacting overall performance), consult a plumber or American Standard directly. These components are integral to the Champion Pro's design and may require specialized knowledge to diagnose and repair.

Prevention Tips

To help prevent future toilet problems, here are a few tips:

Avoid Flushing Non-Flushable Items: Only flush toilet paper and human waste. Avoid flushing items like paper towels, feminine hygiene products, wipes, and cotton balls, as these can clog the toilet and damage the plumbing.
Regularly Clean the Toilet: Cleaning the toilet regularly can help prevent mineral buildup and other problems. Use a mild cleaning solution and avoid harsh chemicals that could damage the toilet's components.
Check for Leaks Periodically: Periodically check the toilet for leaks, even if you don't notice any problems. The food coloring test is a simple way to detect hidden leaks.
Replace Worn Components: Replace worn components, such as the flapper and fill valve, as needed. These components are relatively inexpensive and easy to replace, and replacing them can help prevent more serious problems down the road.

By following these troubleshooting steps and prevention tips, you can keep your American Standard Champion Pro 1.6 GPF toilet running smoothly for years to come. Remember, if you're ever unsure about a repair, it's always best to call a professional plumber.
