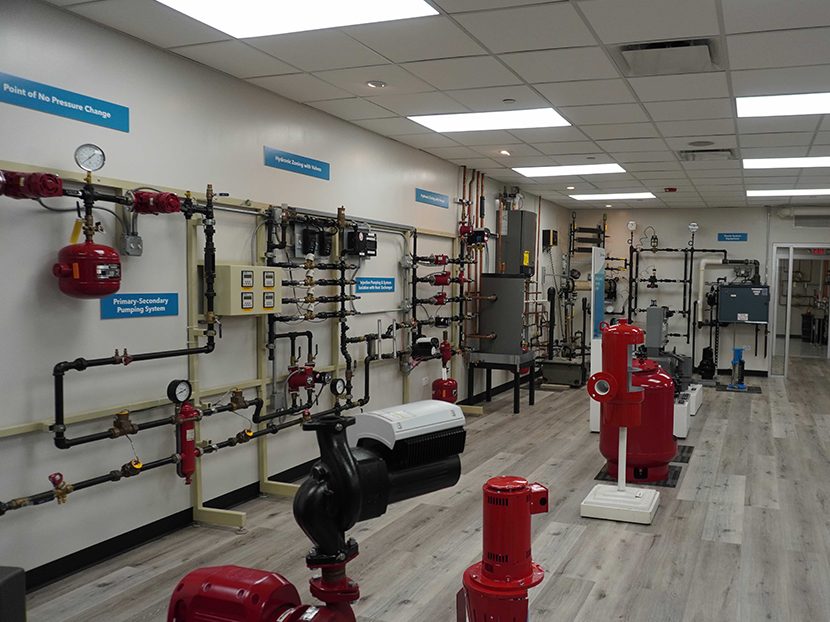

Welcome! Many homeowners rely on Bell & Gossett (B&G) circulators, often learned about at the famous "Little Red Schoolhouse," for efficient home heating and cooling. But like any mechanical system, problems can arise. One common issue is a circulator pump that's running but not circulating water properly. This leads to uneven heating, cold radiators, or a system that never quite reaches the desired temperature. Don't panic! Often, you can diagnose and even fix the problem yourself. This guide will walk you through a methodical troubleshooting process. However, always prioritize safety. If you're uncomfortable with any step, or suspect a more complex issue, call a qualified HVAC professional.

Step 1: Initial Assessment & Safety First

Before you touch anything, let's take some preliminary steps to ensure your safety and get a better understanding of the situation.

Safety Checklist:

Turn off the power: Locate the breaker that controls your heating system and switch it off. This is absolutely crucial to prevent electrical shock.
Allow to cool: Let the system cool down. Working with hot water and components can cause burns. Give it at least 30 minutes, longer if the system was running intensely.
Gather your tools: You'll likely need a screwdriver (various types), an adjustable wrench, a bucket, and some rags.
Document: Take pictures of your system before you start disconnecting anything. This helps immensely when reassembling.

Observe and Listen:

Carefully examine the circulator pump. Note the following:

Is the pump running? You should hear a hum or feel a slight vibration if it's powered on (after you've restored power momentarily to check, then immediately shut it off again). If you hear nothing, the pump may not be receiving power.
Leaks: Look for any signs of water leaking around the pump housing, flanges, or fittings.
Noise: Is the pump making unusual noises like grinding, squealing, or excessive humming?
System pressure: Check the pressure gauge on your boiler. Low pressure can prevent proper circulation. A typical range is 12-15 PSI when the system is cold.

Step 2: Bleeding the System

Air trapped in the system is a frequent culprit for circulation problems. Air pockets can block water flow, preventing the pump from doing its job. Bleeding the system removes this trapped air.

Locate Bleeder Valves:

Bleeder valves (also called air vents) are usually located at the high points of your system, such as:

Radiators: Often found at the top of the radiator on one end.
Baseboard heaters: Similar to radiators, look for a small valve.
Near the circulator pump itself: Some systems have automatic or manual air vents near the pump.

Bleeding Procedure:

Prepare: Place a bucket and rags beneath the bleeder valve to catch any water.
Open the valve: Slowly open the bleeder valve with a screwdriver or bleeder key (depending on the valve type). You should hear air hissing out.
Wait for water: Continue bleeding until a steady stream of water, free of air bubbles, comes out.
Close the valve: Once you have a solid stream of water, close the valve tightly. Do not overtighten!
Repeat: Repeat this process at each bleeder valve in your system, starting with the ones closest to the boiler and working your way outward.
Check pressure: After bleeding, check the system pressure. If it's low, you may need to add water to the system (see Step 4).

Step 3: Inspecting and Cleaning the Circulator Pump

Sometimes, debris or corrosion can impede the pump's impeller, the rotating component that moves the water. Cleaning the pump might resolve the issue.

Isolating the Pump:

Before disassembling the pump, you need to isolate it from the rest of the system to prevent water from flooding out.

Close isolation valves: Most systems have isolation valves on either side of the circulator pump. Close these valves to shut off the water flow to the pump. If you don't have isolation valves, you'll need to drain the system partially – this is best left to a professional.
Release pressure: Carefully open a bleeder valve or drain valve near the pump to relieve any residual pressure.

Disassembling and Cleaning:

Remove the pump housing: Consult your pump's manual (or look for online resources) for specific instructions on removing the pump housing. Usually, this involves unscrewing bolts or loosening flanges.
Inspect the impeller: Once the housing is off, carefully inspect the impeller. Look for debris like rust flakes, sediment, or mineral buildup.
Clean the impeller: Gently clean the impeller with a soft brush and clean water. You can also use a mild descaling solution if necessary. Be careful not to damage the impeller blades.
Inspect the pump volute: Check the volute (the casing surrounding the impeller) for any obstructions or damage. Clean it thoroughly.
Reassemble: Reassemble the pump housing, ensuring all gaskets and O-rings are in good condition and properly seated. Replace them if necessary.
Open isolation valves: Slowly open the isolation valves to reintroduce water to the pump.
Bleed the pump: Bleed the pump to remove any trapped air.

Step 4: Checking and Adjusting System Pressure

Proper system pressure is essential for optimal circulation. Low pressure can lead to cavitation (air bubbles forming and collapsing in the pump), reduced heating efficiency, and potential damage to the system.

Reading the Pressure Gauge:

Locate the pressure gauge on your boiler. It's typically a round gauge with a needle indicating the system pressure in PSI (pounds per square inch).

Adding Water (Increasing Pressure):

Locate the fill valve: The fill valve is used to add water to the system. It's usually located near the boiler.
Open the fill valve: Slowly open the fill valve. You should hear water flowing into the system.
Monitor the pressure gauge: Watch the pressure gauge as you add water. Aim for a cold system pressure of 12-15 PSI.
Close the fill valve: Once the desired pressure is reached, close the fill valve tightly.
Bleed the system: Bleed the system again to remove any air that may have been introduced while adding water.

Addressing High Pressure:

While less common, high system pressure can also cause problems. If the pressure is significantly above 15 PSI when the system is cold, there may be an issue with the expansion tank (which regulates pressure fluctuations). This usually requires professional attention.

Step 5: Capacitor Check (If Applicable)

Some circulator pumps use a capacitor to help start the motor. A failing capacitor can prevent the pump from starting or cause it to run erratically.

Locating the Capacitor:

The capacitor is typically a small cylindrical component located inside the pump's electrical box. Again, ensure the power is OFF before opening the electrical box.

Visual Inspection:

Look for any signs of damage to the capacitor, such as:

Bulging or swelling
Cracks or leaks
Burnt smell

Testing (Requires a Multimeter):

Testing a capacitor requires a multimeter with capacitance testing capability. If you're not comfortable using a multimeter, skip this step and consult a professional.

Disconnect the capacitor: Carefully disconnect the capacitor from the circuit.
Set the multimeter: Set the multimeter to capacitance mode (usually marked with a "μF" or "nF" symbol).
Connect the multimeter: Connect the multimeter probes to the capacitor terminals.
Read the value: Compare the reading on the multimeter to the capacitor's rated capacitance (usually printed on the capacitor). If the measured value is significantly lower (e.g., more than 20% off), the capacitor is likely failing and needs to be replaced.

Replacing the Capacitor:

Replacing a capacitor is a relatively simple task, but it's crucial to use the correct replacement. Always use a capacitor with the same voltage and capacitance rating as the original.

Purchase a replacement: Buy a new capacitor from a reputable supplier.
Install the new capacitor: Carefully connect the new capacitor to the circuit, ensuring correct polarity (if applicable – some capacitors are non-polarized).
Reassemble the electrical box: Close and secure the electrical box.

When to Call a Professional

While this guide covers common troubleshooting steps, certain situations require the expertise of a qualified HVAC professional. Do not attempt repairs beyond your comfort level or if you encounter any of the following:

No isolation valves: If you can't isolate the pump without draining the entire system, call a professional.
Major leaks: Significant leaks that you can't easily fix.
Boiler problems: Issues with the boiler itself, such as low water cutoff problems, pressure relief valve discharge, or unusual noises.
Electrical issues: If you suspect an electrical problem beyond a simple capacitor replacement, such as wiring faults or a faulty motor.
Expansion tank issues: Problems with the expansion tank, such as consistently high system pressure or a waterlogged tank.
Complex system configurations: If you have a complex heating system with multiple zones or specialized components.
Uncertainty: If you've tried the steps above and the problem persists, or if you're simply not comfortable working on the system yourself.

Ignoring these warning signs can lead to further damage to your heating system and potentially dangerous situations. A professional HVAC technician has the knowledge, experience, and tools to diagnose and repair complex issues safely and effectively.

By following these steps, you can often diagnose and resolve common circulator pump problems yourself, saving time and money. Remember to prioritize safety, and don't hesitate to call a professional when needed. Good luck!
