Bell & Gossett Series 100 Booster Pump: A Deep Dive for Homeowners, Technicians, and Facility Managers

The Bell & Gossett (B&G) Series 100 booster pump is a workhorse in hydronic heating and cooling systems, renowned for its reliability and versatility. Whether you're a homeowner looking to understand your system better, an HVAC technician seeking in-depth product knowledge, or a facility manager overseeing a large building's climate control, this article provides a comprehensive overview of this popular pump.

What is a Booster Pump and Why is it Important?

Before diving into the specifics of the Series 100, let's clarify the role of a booster pump in an HVAC system. Simply put, a booster pump provides the necessary pressure to circulate hot or chilled water throughout a building. Think of it like the heart of your hydronic system, ensuring consistent and efficient temperature distribution. Without adequate pressure, water may not reach all areas, leading to uneven heating or cooling, reduced efficiency, and increased energy costs.

In many residential and commercial buildings, the boiler (for heating) or chiller (for cooling) alone cannot provide sufficient pressure to overcome the friction losses in the piping network. This is where booster pumps like the Series 100 step in. They supplement the system's pressure, guaranteeing proper flow rates and optimal performance.

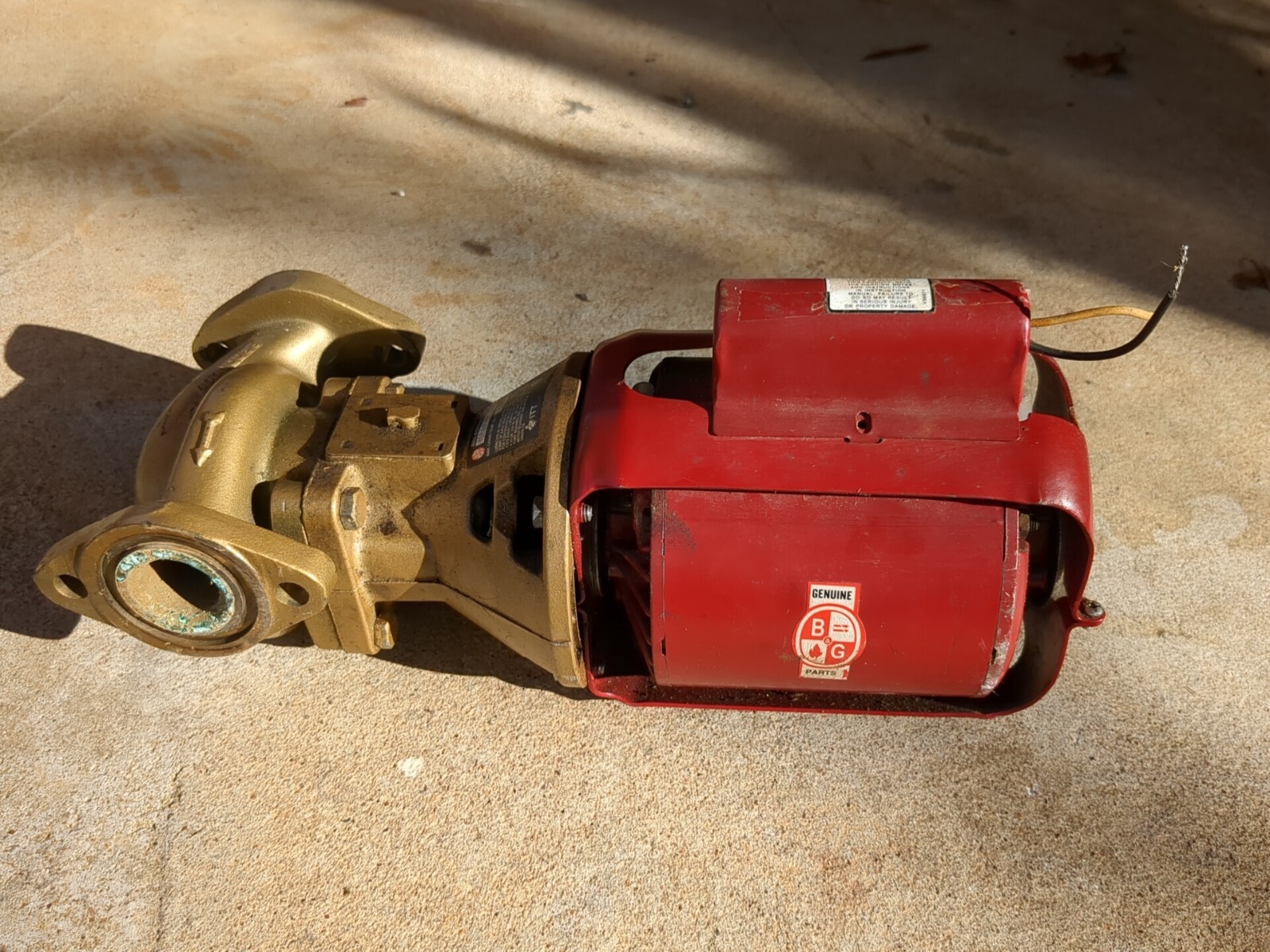

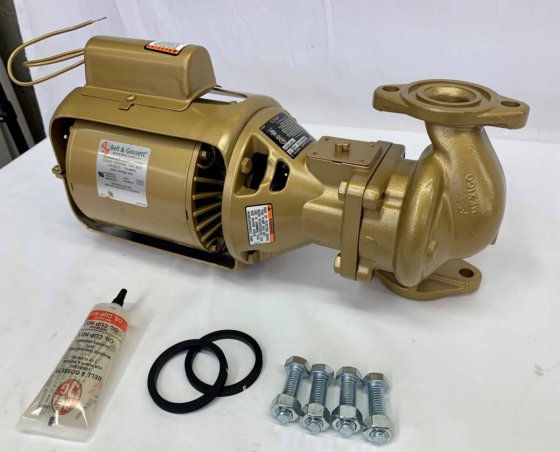

Introducing the Bell & Gossett Series 100

The B&G Series 100 is a close-coupled, centrifugal pump designed for a wide range of applications. Its robust construction, efficient design, and ease of maintenance have made it a staple in the HVAC industry for decades. Its design consists of a motor directly coupled to a pump impeller, creating a compact and efficient unit. The close-coupled design eliminates the need for separate couplings and alignment, reducing complexity and potential maintenance issues.

Key Features and Benefits

Durable Construction: Typically made with cast iron casings and bronze impellers, the Series 100 is built to withstand the rigors of continuous operation. This ensures a long lifespan and minimizes the need for frequent repairs.
Efficient Performance: The pump's hydraulic design maximizes flow rates and minimizes energy consumption. This translates to lower operating costs and reduced environmental impact.
Easy Maintenance: The close-coupled design simplifies maintenance and repairs. Access to internal components is straightforward, reducing downtime and labor costs.
Versatile Applications: The Series 100 can be used in a variety of hydronic systems, including heating, cooling, domestic hot water, and process water applications.
Wide Range of Sizes and Configurations: B&G offers the Series 100 in various sizes and configurations to meet the specific needs of different applications. This allows for precise matching of pump performance to system requirements.

Technical Specifications and Performance

Understanding the technical specifications is crucial for selecting the right Series 100 pump for your application. Here are some key parameters to consider:

Flow Rate (GPM): Measured in gallons per minute, this indicates the volume of water the pump can move.
Head (Feet): This represents the pressure the pump can generate, expressed in feet of water.
Horsepower (HP): This indicates the motor's power output.
Motor Voltage: Available in various voltages to match the electrical supply.
Operating Temperature: Specifies the maximum fluid temperature the pump can handle.
Maximum Working Pressure: The highest pressure the pump can safely operate at.

B&G provides detailed performance curves for each Series 100 model, allowing you to determine the pump's flow rate and head at different operating points. These curves are essential for proper pump selection and system design.

Example: A small residential system might require a Series 100 pump with a flow rate of 20 GPM and a head of 15 feet. A larger commercial building could need a pump with a flow rate of 100 GPM and a head of 50 feet. Selecting the appropriate pump ensures optimal system performance and energy efficiency.

Applications for Homeowners

For homeowners, the Series 100 is commonly used in:

Radiant Heating Systems: Ensuring even heat distribution throughout the house.
Hydronic Baseboard Heating: Boosting pressure to overcome resistance in long runs of baseboard.
Domestic Hot Water Recirculation: Maintaining constant hot water supply at fixtures.

If you're experiencing inconsistent heating or cooling, or if your hot water takes a long time to arrive, a failing or undersized booster pump could be the culprit. Consulting with a qualified HVAC technician is recommended to diagnose the issue and determine if a Series 100 pump is the right solution.

Applications for HVAC Technicians and Facility Managers

HVAC technicians and facility managers rely on the Series 100 for a wide range of applications, including:

Chilled Water Systems: Providing the necessary pressure to circulate chilled water in commercial buildings.
Boiler Feed Systems: Supplying water to boilers at the required pressure.
Process Water Systems: Circulating water in industrial applications.
HVAC Retrofits: Upgrading existing systems to improve performance and efficiency.

When selecting a Series 100 pump for a commercial or industrial application, it's crucial to consider the following factors:

System Flow Rate and Head Requirements: Accurately calculate the flow rate and head needed to meet the building's heating and cooling demands.
Fluid Properties: Consider the temperature, viscosity, and chemical composition of the fluid being pumped.
Piping System Design: Evaluate the pressure drop in the piping network to ensure adequate pump performance.
Energy Efficiency: Select a pump with a high-efficiency motor to minimize energy consumption.
Control Systems: Integrate the pump with a building automation system (BAS) for optimal control and monitoring.

Installation and Maintenance

Proper installation and maintenance are essential for ensuring the long-term reliability of the Series 100 pump. Here are some key considerations:

Installation: Follow the manufacturer's instructions carefully. Ensure proper alignment of the pump and motor. Use appropriate piping connections and supports.
Start-up: Before starting the pump, verify that the system is properly filled with water and that all air is purged.
Regular Inspections: Inspect the pump regularly for leaks, unusual noises, or vibrations.
Lubrication: Lubricate the motor bearings according to the manufacturer's recommendations.
Impeller Cleaning: Periodically inspect and clean the impeller to remove debris and maintain optimal performance.
Seal Replacement: Replace the mechanical seal when it shows signs of wear or leakage.

Cost and Lifespan

The cost of a Bell & Gossett Series 100 pump varies depending on the size, configuration, and features. However, it's generally considered a cost-effective solution due to its durability, efficiency, and ease of maintenance.

Compared to other booster pump brands, B&G generally positions itself in the mid-to-high range in terms of initial cost. However, the long lifespan and reduced maintenance requirements often result in a lower total cost of ownership over the pump's lifetime. Alternative brands to consider would be Taco or Grundfos depending on the application and local availability.

With proper installation and maintenance, a Series 100 pump can last for 15-20 years or even longer. Regular maintenance and prompt repairs can significantly extend the pump's lifespan and prevent costly breakdowns.

Troubleshooting Common Issues

Even with proper maintenance, issues can sometimes arise. Here are some common problems and potential solutions:

Pump Not Starting: Check the power supply, motor overload protection, and wiring connections.
Low Flow Rate: Check for blocked impellers, air in the system, or an undersized pump.
Excessive Noise or Vibration: Check for cavitation, misalignment, or worn bearings.
Leaks: Inspect the seals, gaskets, and piping connections.

For complex issues, it's always best to consult with a qualified HVAC technician.

Conclusion

The Bell & Gossett Series 100 booster pump is a reliable and versatile solution for a wide range of hydronic heating and cooling applications. Its durable construction, efficient performance, and ease of maintenance make it a popular choice among homeowners, HVAC technicians, and facility managers. By understanding the pump's features, specifications, and maintenance requirements, you can ensure optimal system performance and a long service life. Whether maintaining a cozy home or managing a large commercial complex, understanding the role of the Series 100 contributes to a more comfortable and efficient environment.
