How Does A Heat Pump Water Heater Work

A heat pump water heater (HPWH) is an energy-efficient appliance that heats water using a completely different principle than traditional electric resistance or gas water heaters. Instead of generating heat directly, it moves heat from one place to another, making it significantly more efficient.

This guide will explain how a heat pump water heater works, break down its key components, discuss its advantages and disadvantages, and help you understand if it's the right choice for your home.

The Basics: How Heat Pumps Transfer Heat

At its core, a heat pump water heater operates on the same principle as a refrigerator, but in reverse. A refrigerator pulls heat from inside the appliance and releases it into the surrounding room. A heat pump water heater pulls heat from the surrounding air and transfers it to the water in the tank.

This heat transfer process is much more efficient than generating heat directly using electricity or gas. Instead of converting energy into heat (which always involves some loss), a heat pump simply moves existing heat, using a relatively small amount of energy to power the transfer.

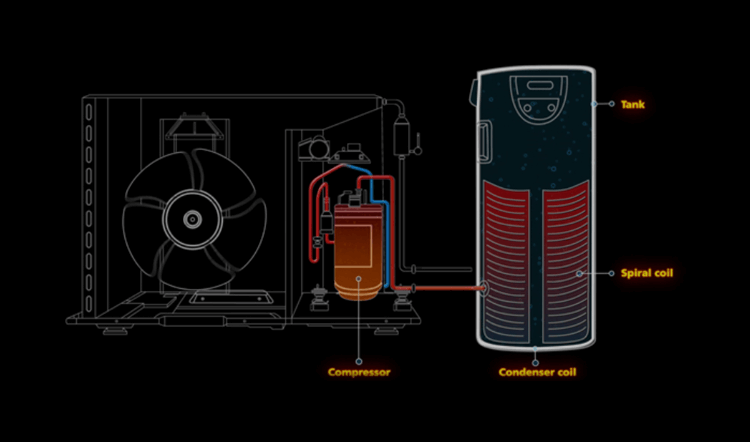

The Key Components

To understand how a heat pump water heater functions, it's important to know its key components:

Evaporator: The evaporator is where the refrigerant absorbs heat from the surrounding air. Think of it as the heat pump's "collector."
Refrigerant: Refrigerant is a special fluid that readily absorbs and releases heat as it changes between liquid and gas states. Think of refrigerant as the "blood" of the heat pump system, carrying heat from one component to another.
Compressor: The compressor increases the pressure and temperature of the refrigerant. This is the heart of the heat pump system, requiring electrical energy to operate.
Condenser: The condenser is where the refrigerant releases the heat it has collected into the water tank.
Water Tank: The insulated water tank stores the heated water for use.
Supplemental Electric Resistance Elements: Most heat pump water heaters also include electric resistance heating elements as a backup. These elements kick in when the heat pump can't keep up with demand, such as during periods of high hot water usage or when the ambient air temperature is too low.
Control System: A control system manages the operation of the heat pump and supplemental heating elements, optimizing for efficiency and hot water availability.

The Refrigeration Cycle: A Step-by-Step Explanation

The process of heat transfer in a heat pump water heater, known as the refrigeration cycle, involves four key stages:

Evaporation: The refrigerant starts as a cold, low-pressure liquid in the evaporator. Air is blown across the evaporator coil. As the air passes over the coil, the refrigerant absorbs heat from the air and evaporates, turning into a low-pressure gas. The air passing over the coil is cooled slightly.
Compression: The low-pressure refrigerant gas is then drawn into the compressor. The compressor increases the pressure and temperature of the refrigerant. This process requires electrical energy. The refrigerant is now a hot, high-pressure gas.
Condensation: The hot, high-pressure refrigerant gas travels to the condenser, which is typically wrapped around the water tank. As the refrigerant passes through the condenser, it releases heat into the water, warming the water in the tank. As it releases heat, the refrigerant condenses back into a high-pressure liquid.
Expansion: The high-pressure liquid refrigerant then passes through an expansion valve, which reduces its pressure and temperature. This brings the refrigerant back to its original cold, low-pressure state, ready to begin the cycle again in the evaporator.

This continuous cycle of evaporation, compression, condensation, and expansion allows the heat pump to efficiently extract heat from the air and transfer it to the water.

How This Translates to Efficiency

The efficiency of a heat pump water heater is measured by its Uniform Energy Factor (UEF). The UEF indicates how much hot water the unit produces for each unit of energy it consumes. Traditional electric resistance water heaters typically have a UEF of around 0.9, meaning they convert electricity into heat with about 90% efficiency. In contrast, heat pump water heaters often have UEFs of 2.0 or higher. This means they produce twice as much (or more) hot water for the same amount of electricity, making them significantly more energy-efficient.

Think of it like this: An electric resistance heater is like a toaster; it uses electricity to directly create heat. A heat pump is like a lever; it uses a small amount of energy to move a much larger weight (in this case, heat).

Types of Heat Pump Water Heaters

There are primarily two types of heat pump water heaters:

Integrated (or Standalone) Heat Pump Water Heaters: These units combine the heat pump and water tank into a single appliance. They are designed to replace traditional water heaters directly.
Split-System Heat Pump Water Heaters: These systems separate the heat pump unit from the water tank. The heat pump unit is typically located outside the house, similar to a central air conditioner, while the water tank is located inside. This type can be more efficient and quieter, but it requires more complex installation.

Advantages of Heat Pump Water Heaters

Heat pump water heaters offer several advantages over traditional water heaters:

Energy Efficiency: They are significantly more energy-efficient, which can lead to substantial savings on your energy bills over the lifespan of the unit.
Reduced Carbon Footprint: By using less energy, they contribute to a smaller carbon footprint, helping to protect the environment.
Potential Rebates and Incentives: Many utility companies and government agencies offer rebates and incentives for installing energy-efficient appliances like heat pump water heaters.
Cooling Effect: In the summer, the heat pump can slightly cool the surrounding area as it extracts heat from the air.

Disadvantages of Heat Pump Water Heaters

Despite their advantages, heat pump water heaters also have some disadvantages to consider:

Higher Upfront Cost: They typically have a higher purchase price than traditional water heaters. However, the energy savings can often offset this cost over time.
Slower Heating Time: Heat pumps generally heat water more slowly than electric resistance heaters. This means it may take longer to recover from periods of high hot water usage. However, many models include a supplemental electric resistance element for faster recovery when needed.
Noise: Heat pump water heaters produce some noise during operation, similar to a refrigerator or air conditioner. This can be a concern if the unit is located near living areas.
Space Requirements: Integrated units may be larger than traditional water heaters, requiring more space for installation.
Ambient Air Temperature Requirements: Heat pump water heaters rely on the surrounding air temperature to function efficiently. They typically perform best in temperatures above 40°F (4.4°C). In colder climates, the heat pump's efficiency may decrease, and the supplemental electric resistance elements may need to operate more frequently.
Dehumidification: Because they extract heat from the surrounding air, they also remove moisture, which can dehumidify the space they are in. While this can be an advantage in humid climates, it might be a drawback in drier regions.

Installation Considerations

Proper installation is crucial for ensuring optimal performance and longevity of a heat pump water heater:

Location: Choose a location that is relatively warm and has good ventilation. Avoid placing the unit in unheated spaces or areas with very low temperatures. Garages, basements, and utility rooms are often good choices.
Space: Ensure you have enough space for the unit and for future maintenance. Check the manufacturer's specifications for clearance requirements.
Electrical Requirements: Heat pump water heaters require a dedicated electrical circuit. Consult a qualified electrician to ensure your electrical system can handle the load.
Drainage: The unit will produce condensate (water) during operation. Ensure there is a suitable drain nearby to collect and dispose of the condensate.
Professional Installation: It is generally recommended to have a qualified plumber install your heat pump water heater to ensure it is done correctly and safely.

Is a Heat Pump Water Heater Right for You?

Deciding whether a heat pump water heater is right for you depends on several factors:

Your Climate: Heat pump water heaters perform best in warmer climates with moderate humidity. If you live in a very cold climate, you may need to consider a split-system unit with an outdoor heat pump or be prepared for the supplemental electric resistance elements to operate more frequently.
Your Hot Water Usage: If you have a large family with high hot water usage, you may want to consider a larger unit or a model with a faster recovery rate.
Your Budget: Factor in the higher upfront cost of a heat pump water heater, but also consider the long-term energy savings. Check for rebates and incentives that can help offset the initial cost.
Your Home's Infrastructure: Ensure you have adequate space, electrical capacity, and drainage for the unit.
Your Environmental Concerns: If you are looking to reduce your carbon footprint and conserve energy, a heat pump water heater is an excellent choice.

In summary, heat pump water heaters are an energy-efficient and environmentally friendly alternative to traditional water heaters. While they may have a higher upfront cost and some installation considerations, the long-term energy savings and environmental benefits can make them a worthwhile investment for many homeowners. By understanding how they work and weighing the pros and cons, you can make an informed decision about whether a heat pump water heater is right for your needs.
