Understanding the Majestic 36BDVRRN Pilot Assembly: A Comprehensive Guide

The Majestic 36BDVRRN is a popular gas fireplace known for its aesthetic appeal and efficient heating capabilities. At the heart of its reliable operation lies the pilot assembly. This component is crucial for igniting the main burner and ensuring consistent performance. This guide provides a detailed look at the Majestic 36BDVRRN pilot assembly, covering its function, troubleshooting, maintenance, and replacement options.

What is a Pilot Assembly and Why is it Important?

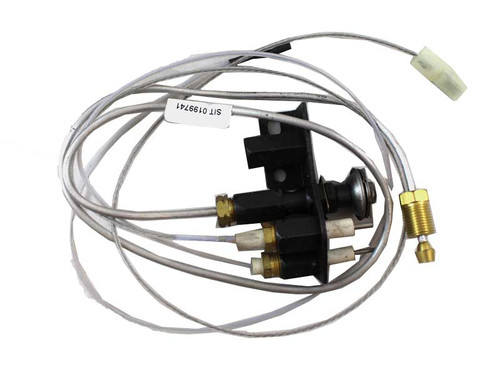

The pilot assembly is a small, continuously burning flame that serves as the ignition source for the main burner in a gas fireplace or furnace. It consists of several key components:

• Pilot Burner: This is where the small, constant flame burns.
• Thermocouple or Thermopile: This safety device generates a small electrical current when heated by the pilot flame. This current tells the gas valve that the pilot is lit, allowing gas to flow to the main burner when heat is called for.
• Gas Orifice: This precisely sized opening controls the amount of gas flowing to the pilot burner.
• Electrode (in some models): Used for electronic ignition, sparking to light the pilot flame.

Without a properly functioning pilot assembly, the main burner will not ignite, leaving you without heat. A faulty pilot assembly can also pose safety risks, such as gas leaks or incomplete combustion.

Troubleshooting Common Pilot Assembly Issues

Several issues can affect the performance of the Majestic 36BDVRRN pilot assembly. Here are some common problems and how to diagnose them:

• Pilot Light Won't Stay Lit: This is the most common problem. Possible causes include a dirty pilot orifice, a faulty thermocouple or thermopile, or a weak gas supply.
• Weak Pilot Flame: A small or flickering pilot flame may not generate enough current to keep the gas valve open. This can be caused by a dirty pilot orifice or low gas pressure.
• Pilot Light Goes Out Frequently: This can be due to drafts, a faulty thermocouple, or a blocked vent.
• Yellow or Sooty Pilot Flame: This indicates incomplete combustion and could be caused by a dirty pilot orifice or insufficient airflow.

DIY Troubleshooting Steps

Important Safety Note: Before attempting any troubleshooting, always turn off the gas supply to the fireplace. If you are not comfortable working with gas appliances, contact a qualified HVAC technician.

1. Visual Inspection: Check the pilot assembly for any obvious signs of damage, such as cracks or corrosion. Inspect the pilot orifice for dirt or debris.
2. Cleaning the Pilot Orifice: Use a small wire or a specialized pilot orifice cleaning tool to carefully remove any obstructions from the pilot orifice. Be gentle to avoid enlarging the opening.
3. Testing the Thermocouple/Thermopile: Use a multimeter to test the output voltage of the thermocouple or thermopile. A healthy thermocouple should produce a voltage of at least 20-30 millivolts when heated by the pilot flame. A thermopile will produce a higher voltage, typically in the 500-750 millivolt range. If the voltage is low, the thermocouple or thermopile needs to be replaced.
4. Checking Gas Pressure: Ensure that the gas supply to the fireplace is at the correct pressure. This requires specialized equipment and should be performed by a qualified technician.

Replacing the Majestic 36BDVRRN Pilot Assembly

If troubleshooting doesn't resolve the issue, replacing the pilot assembly may be necessary. You can purchase a replacement pilot assembly specifically designed for the Majestic 36BDVRRN. When purchasing a replacement, ensure it is a genuine Majestic part or a compatible aftermarket part from a reputable supplier.

Installation Steps

Again, safety first! Turn off the gas supply before beginning the replacement.

1. Remove the Old Pilot Assembly: Carefully disconnect the gas line and the thermocouple/thermopile from the old pilot assembly. Remove any screws or fasteners holding the assembly in place.
2. Install the New Pilot Assembly: Position the new pilot assembly in the same location as the old one. Secure it with the screws or fasteners.
3. Connect the Gas Line and Thermocouple/Thermopile: Reconnect the gas line and the thermocouple/thermopile to the new pilot assembly. Ensure all connections are tight to prevent gas leaks. Use pipe dope or Teflon tape on threaded gas connections.
4. Test for Gas Leaks: Apply a soapy water solution to all gas connections. If bubbles appear, there is a gas leak. Tighten the connections until the leaks stop.
5. Light the Pilot Light: Follow the manufacturer's instructions for lighting the pilot light.
6. Observe Operation: Ensure the pilot flame is stable and that the main burner ignites properly when heat is called for.

Maintenance Tips for Long-Term Reliability

Regular maintenance can help prevent pilot assembly problems and extend the life of your Majestic 36BDVRRN fireplace.

• Annual Cleaning: Clean the pilot assembly and the surrounding area at least once a year. Remove any dust, debris, or soot buildup.
• Professional Inspection: Have your fireplace professionally inspected by a qualified HVAC technician every year. They can identify potential problems early and perform necessary maintenance.
• Check for Gas Leaks Regularly: Use a soapy water solution to check for gas leaks around the fireplace connections.

Comparing Majestic to Other Fireplace Brands

When considering a gas fireplace, comparing brands and models is crucial. Majestic is known for its stylish designs and reliable performance. Other popular brands include Heat & Glo, Napoleon, and Lennox. Each brand offers different features, styles, and price points. It's important to consider your individual needs and preferences when making a decision.

While not directly comparable in terms of pilot assembly, understanding the broader HVAC landscape helps provide context. For instance, when comparing Carrier furnaces to Trane furnaces, you consider factors like AFUE ratings, warranty, and overall performance. Similarly, with fireplaces, consider BTU output, venting options, and aesthetic appeal.

Warranty Information

The Majestic 36BDVRRN typically comes with a limited warranty. The warranty period may vary depending on the specific model and the date of purchase. It's important to read the warranty information carefully to understand what is covered and what is not. Generally, the warranty covers defects in materials and workmanship, but it may not cover damage caused by improper installation, misuse, or neglect. Keep your purchase receipt and warranty documentation in a safe place. Contact Majestic or your dealer for warranty service.

Pricing and Availability

The price of the Majestic 36BDVRRN pilot assembly and the fireplace itself can vary depending on the retailer and location. You can find replacement pilot assemblies online or at your local HVAC supply store. Check with multiple vendors to compare prices. The Majestic 36BDVRRN fireplace is widely available through authorized dealers and online retailers. Prices typically range from $2,000 to $5,000, depending on the model and features.

Conclusion

The Majestic 36BDVRRN pilot assembly is a vital component for the reliable operation of your gas fireplace. By understanding its function, troubleshooting common issues, and performing regular maintenance, you can ensure that your fireplace provides years of comfortable and efficient heating. Remember to prioritize safety when working with gas appliances, and don't hesitate to contact a qualified HVAC technician if you need assistance. Regular maintenance will protect your investment and ensure long term efficiency. Understanding ratings like AFUE (Annual Fuel Utilization Efficiency) for furnaces and SEER (Seasonal Energy Efficiency Ratio) for air conditioners is important for overall home energy efficiency, but directly doesn't apply to fireplace pilot assemblies. However, the efficiency of the fireplace itself is still an important consideration for your heating needs.
