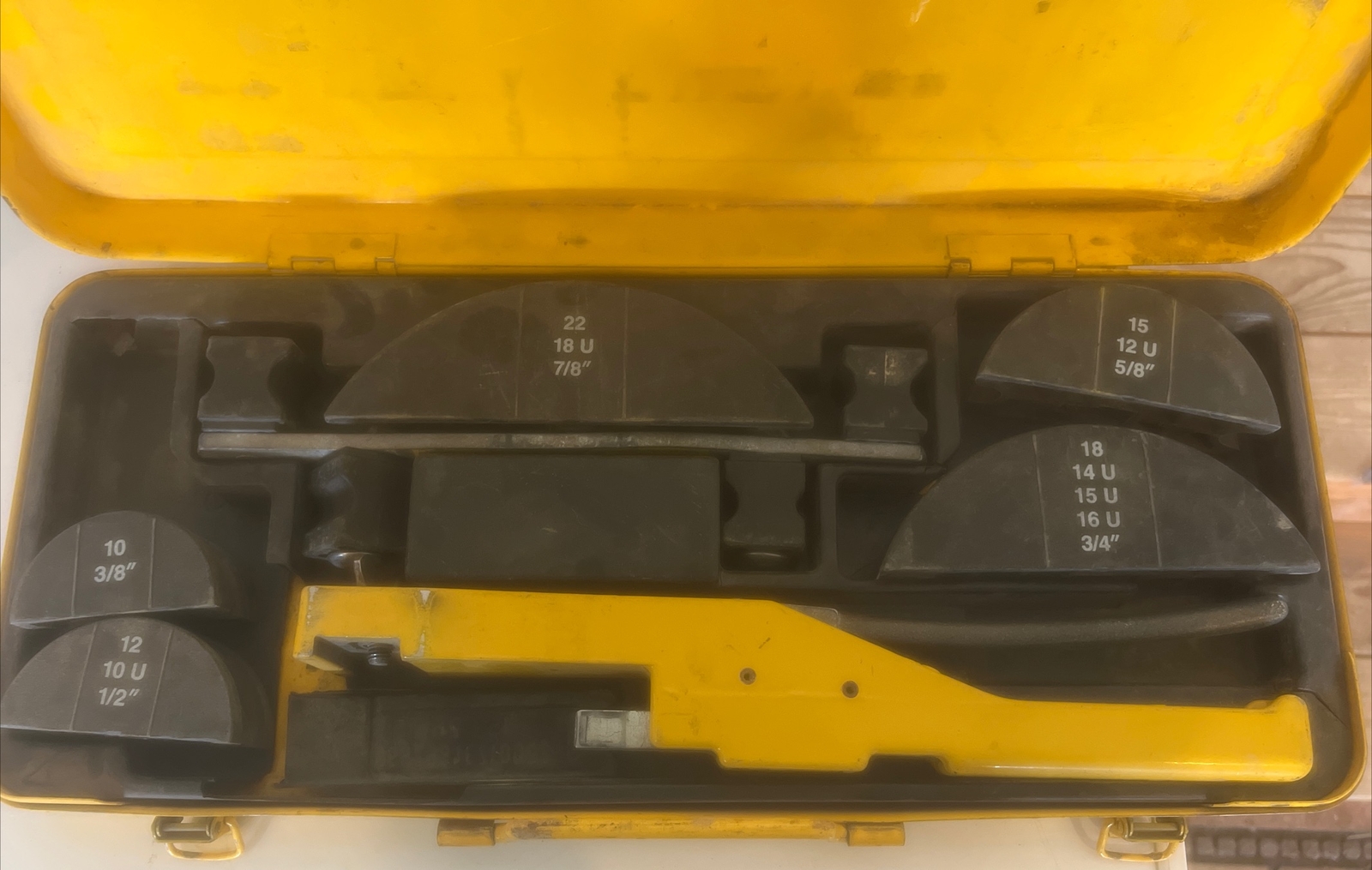

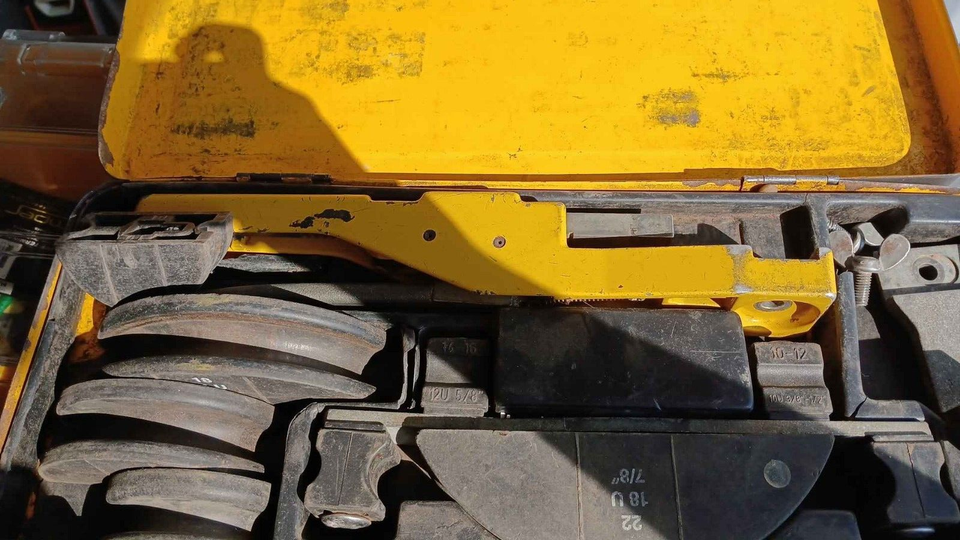

Yellow Jacket Ratchet Tube Bender 60331

Frequently Asked Questions: Yellow Jacket Ratchet Tube Bender 60331

The Yellow Jacket 60331 Ratchet Tube Bender is a popular tool for bending soft copper, aluminum, and brass tubing. This FAQ addresses common questions users have about its capabilities, usage, and maintenance. We aim to provide clear and concise answers to help you get the most out of your tube bender.

Question 1: What type and size of tubing can the Yellow Jacket 60331 bend?

The Yellow Jacket 60331 is primarily designed for bending soft copper, aluminum, and brass tubing. It is suitable for the following tubing sizes:

1/4" O.D. (Outside Diameter)
5/16" O.D.
3/8" O.D.

Important Note: This bender is not intended for use with steel tubing or hard-drawn copper. Attempting to bend these materials can damage the tool and the tubing.

Question 2: What is the maximum bending angle I can achieve with this tube bender?

The Yellow Jacket 60331 allows for bending up to a maximum angle of 90 degrees. The degree markings are clearly indicated on the bending form, allowing for accurate bends every time. Be careful not to exceed the 90-degree limit as this can damage the tool or tubing.

Question 3: How do I properly use the Yellow Jacket 60331 tube bender to create a clean, kink-free bend?

Achieving a clean, kink-free bend requires proper technique. Here's a step-by-step guide:

Preparation: Ensure the tubing is clean and free of any burrs or sharp edges. This will help prevent scoring or damage during bending. Lightly lubricate the tube with a lubricant for non-ferrous metals to ease the bending process and reduce friction.
Select the Correct Form: Choose the bending form (also referred to as a "shoe") that corresponds to the O.D. of your tubing (1/4", 5/16", or 3/8").
Position the Tubing: Open the bending form and insert the tubing. Align the zero (0) mark on the form with the starting point of your desired bend. Make sure the tubing sits snugly in the groove of the form.
Engage the Ratchet Mechanism: Close the bending form and engage the ratchet mechanism.
Bend Gradually: Slowly and steadily pump the handle of the ratchet bender. Avoid jerky or abrupt movements, as these can cause kinks. Observe the degree markings on the form as you bend.
Achieve Desired Angle: Continue bending until you reach the desired angle. Use the degree markings on the form to ensure accuracy.
Release the Tubing: Once the desired bend is achieved, release the ratchet mechanism and carefully remove the bent tubing from the form.

Key Tips for Kink-Free Bends:

Use Soft Tubing: As mentioned before, this bender is for soft copper, aluminum, and brass.
Lubricate: Lubricating the tubing reduces friction and allows for smoother bending.
Bend Slowly and Steadily: Avoid rushing the bending process.
Inspect Regularly: Check the tubing and the bender for any signs of damage during the bending process.

Question 4: What kind of maintenance does the Yellow Jacket 60331 require?

Proper maintenance will extend the life of your Yellow Jacket 60331 tube bender. Here are some key maintenance tasks:

Cleaning: After each use, wipe down the bender with a clean cloth to remove any dirt, debris, or metal shavings.
Lubrication: Periodically lubricate the moving parts of the ratchet mechanism with a light machine oil. This will ensure smooth operation and prevent rust.
Inspection: Regularly inspect the bending forms for any signs of wear or damage. Replace damaged forms immediately. Check the ratchet mechanism for proper function.
Storage: Store the bender in a dry, clean place when not in use. This will help prevent rust and corrosion. A dedicated tool box or case is ideal.

Important Note: Do not use harsh chemicals or abrasive cleaners on the bender, as these can damage the finish and potentially harm the internal components.

Question 5: My tube is kinking even though I'm using soft copper. What am I doing wrong?

Kinking, even with soft copper, can occur due to several reasons. Here's a breakdown of the most common causes and how to address them:

Using the Wrong Tubing: Double-check that you are using soft copper tubing. Even if it's labeled as copper, it might be hard-drawn. Hard-drawn copper requires specialized bending tools and techniques.
Insufficient Lubrication: Even with soft copper, lubrication is crucial. Make sure you are applying a suitable lubricant for non-ferrous metals to the tubing before bending. Reapply if necessary, especially for bends exceeding 45 degrees.
Bending Too Quickly: Rushing the bending process is a common mistake. Apply pressure slowly and steadily. Jerky movements are a sure way to create kinks.
Damaged Bending Form: Inspect the bending form for any nicks, dents, or imperfections. Even a small imperfection can create a stress point that leads to kinking. If the form is damaged, replace it immediately.
Tubing Wall Thickness: Very thin-walled tubing is more prone to kinking. While the 60331 is designed for standard wall thickness tubing, exceptionally thin material may require even greater care and lubrication.
Improper Tubing Alignment: Ensure the tubing is seated properly in the bending form groove. If it's not aligned correctly, it can buckle and kink during bending.

Troubleshooting Tip: Try practicing on a scrap piece of tubing to refine your technique and identify the source of the problem.

Question 6: Where can I find replacement parts, like the bending forms or the ratchet mechanism, for the Yellow Jacket 60331?

Replacement parts for the Yellow Jacket 60331 can be found through various channels. The best place to start is with authorized Yellow Jacket distributors or retailers. You can usually locate these distributors through the Yellow Jacket website or by contacting their customer service department. Search online using terms like "Yellow Jacket 60331 replacement parts" or "Yellow Jacket tube bender parts" to see a list of potential suppliers.

Be sure to check the part number and the specific model number of your bender to ensure you are ordering the correct replacement components. Common replacement parts include:

Bending Forms (Shoes): These are specific to the tubing size (1/4", 5/16", 3/8") and are often sold individually.
Ratchet Mechanism Components: Sometimes individual parts of the ratchet, like pawls or springs, can be replaced. However, it might be more cost-effective to replace the entire ratchet assembly.
Handle Grips: If the handle grips are worn or damaged, they can also be replaced.

Tip: Keep your original purchase receipt and any warranty information in case you need to file a warranty claim for defective parts.

Question 7: Can I use this bender to bend tubing inside of a wall or in a tight space?

The Yellow Jacket 60331 is a relatively compact tube bender, but its suitability for use inside walls or in tight spaces depends on the available clearance. Here are some factors to consider:

Space for the Bender Body: The bender itself requires a certain amount of space to be positioned around the tubing. You need enough room to fully close the bending form and operate the ratchet mechanism.
Clearance for the Handle: The ratchet handle needs to be swung back and forth to advance the bend. Ensure you have sufficient clearance for the handle to move freely through its full range of motion.
Accessibility to the Tubing: You must be able to access the tubing to position it in the bending form and remove it after the bend is complete. If the tubing is deeply recessed within a wall, it may be difficult or impossible to use the bender.

In tight spaces, it's often helpful to pre-bend the tubing outside of the confined area before installing it. If that's not possible, consider the following:

Use a Compact Bending Tool: For extremely tight spaces, consider a smaller, more specialized bending tool designed for in-place bending. These tools often have a different mechanism that requires less clearance.
Careful Planning: Before attempting to bend the tubing in place, carefully assess the available space and plan your approach. Consider the angle of the bend and the direction the handle will need to swing.
Protect Surrounding Surfaces: When working in confined areas, protect the surrounding surfaces (walls, floors, etc.) with drop cloths or protective tape to prevent damage.

In summary, while the Yellow Jacket 60331 is portable, its size and the required handle clearance may limit its usefulness in very tight spaces. Carefully assess the available space before attempting to use it in a confined area.
