Carrier 3.5 Ton Ac Unit With Gas Furnace

Many homeowners experience the frustration of their Carrier 3.5 ton AC unit with a gas furnace not heating or cooling effectively. Often, the system seems to be running, but the air coming from the vents is lukewarm or simply not cold enough in summer, or not warm enough in winter. This article provides a structured approach to troubleshoot this common issue, helping you identify and potentially resolve the problem, or determine when it's time to call a professional.

Troubleshooting a Lack of Heating or Cooling

Before you start, always prioritize safety. Turn off the power to both the AC unit and the furnace at the breaker box before performing any inspections or maintenance. This prevents electrical shock and potential damage to the equipment.

Step 1: Initial Assessment - Thermostat and Power

This step requires no tools.

Thermostat Settings: First, verify that your thermostat is set to the correct mode (heat or cool) and the desired temperature. A common mistake is accidentally leaving the thermostat in "fan only" mode, which circulates air without heating or cooling it.
Check the Batteries: Ensure the thermostat batteries are not dead. A weak battery can cause erratic behavior. Replace them if necessary.
Breakers: Check the circuit breakers for both the indoor furnace unit and the outdoor AC unit. A tripped breaker is a common cause of system failure. Reset any tripped breakers. If a breaker trips repeatedly, there may be a serious electrical problem requiring a qualified electrician.
Emergency Shut-Off Switch: Many furnaces have an emergency shut-off switch, often located near the furnace or on a nearby wall. Ensure it's in the "on" position.

If all these checks pass, proceed to the next step.

Step 2: Airflow Obstruction - Filters and Vents

This step requires no tools initially. You might need a screwdriver later.

Air Filter: A dirty air filter is the most frequent cause of reduced airflow and poor heating or cooling performance. Locate the air filter (usually in the furnace or air handler) and inspect it. If it's dirty (covered in dust and debris), replace it with a new filter of the same size and type. Important: Always use the correct filter size and MERV rating recommended by the manufacturer.
Blocked Vents: Check all supply and return vents throughout your home. Make sure they are not blocked by furniture, rugs, or other obstructions. Ensure that vents are open to allow proper air circulation.
Ductwork Inspection (Visual): Visually inspect accessible ductwork (in the basement or attic) for obvious disconnections or damage. Seal any small gaps or tears with duct tape (though professional sealing is always recommended for long-term fixes).

Restricted airflow can significantly reduce system efficiency and even damage components. Addressing airflow issues is often the simplest and most effective way to improve performance.

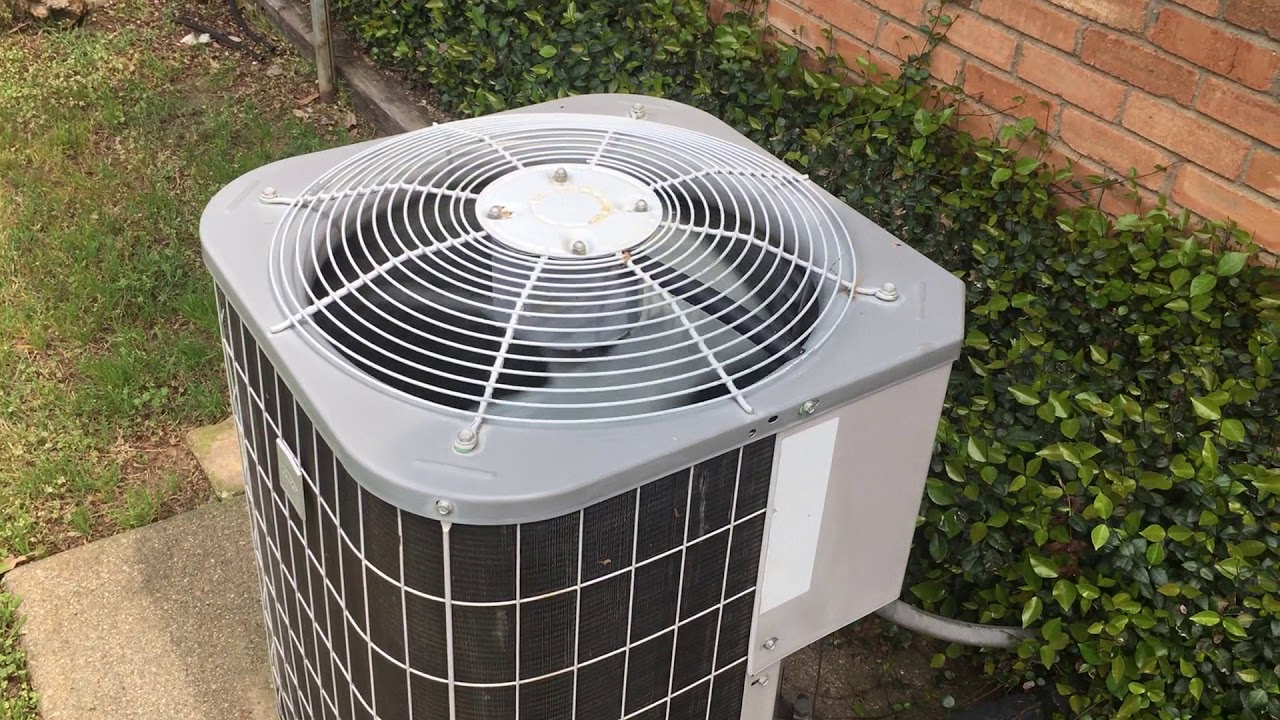

Step 3: Outdoor AC Unit Inspection

This step requires no tools initially, but a garden hose may be needed.

Debris Around the Unit: The outdoor AC unit needs adequate airflow to function correctly. Remove any leaves, branches, grass clippings, or other debris that may be blocking the unit. Maintain at least 2-3 feet of clear space around the unit.
Coil Condition: Visually inspect the outdoor coil (the finned metal area around the unit). If it's covered in dirt, dust, or debris, gently clean it with a garden hose. Do not use a pressure washer, as this can damage the delicate fins. Spray the coil from the inside out to flush away debris. Be careful not to bend the fins. A fin comb tool can be used to straighten bent fins (available at most hardware stores).
Fan Operation: With the power ON, observe the outdoor fan while the AC is running. The fan should be spinning freely and smoothly. If the fan is not running, is making unusual noises, or is wobbling, there may be a motor problem requiring professional attention. Do not attempt to manually spin the fan while the unit is powered on.

Proper maintenance of the outdoor unit is crucial for efficient cooling.

Step 4: Pilot Light/Ignition System (Gas Furnace Only)

This step requires no tools initially, but a lighter or match may be needed if relighting a pilot light.

Warning: Working with gas can be dangerous. If you smell gas or are uncomfortable working with gas appliances, call a qualified HVAC technician or your local gas company immediately.

Pilot Light (Older Furnaces): For older furnaces with a pilot light, check if the pilot light is lit. If it's out, carefully follow the manufacturer's instructions to relight it. These instructions are usually located on a sticker near the burner compartment. Important: Before relighting the pilot light, ensure that the gas valve is in the "off" position for at least five minutes to allow any accumulated gas to dissipate. If the pilot light repeatedly goes out, there may be a problem with the thermocouple or gas valve, requiring professional service.
Electronic Ignition (Newer Furnaces): Newer furnaces use electronic ignition systems. If your furnace is not heating, listen for the igniter clicking or the burner attempting to light. If there's no ignition attempt, the igniter, flame sensor, or control board may be faulty, requiring professional diagnosis and repair.
Flame Sensor: The flame sensor is a small metal rod located near the burner. It detects the presence of a flame and allows the gas valve to stay open. If the flame sensor is dirty or faulty, it may prevent the furnace from staying lit. A professional can clean or replace the flame sensor.

Issues with the ignition system are a common cause of furnace malfunction. Do not attempt to repair gas components unless you are a qualified professional.

Step 5: Condensate Drain Line

This step requires no tools initially, but a wet/dry vacuum may be needed.

Clogged Drain: Both AC units and furnaces produce condensate (water) during operation. This condensate is drained through a drain line. A clogged drain line can cause water to back up, triggering a safety switch that shuts down the system. Locate the condensate drain line (usually a PVC pipe) and check for clogs. You may be able to clear a minor clog by using a wet/dry vacuum to suck out the blockage from the drain opening. Important: Disconnect the power to the unit before using the vacuum.
Algae Growth: Algae can grow in the condensate drain line, contributing to clogs. You can pour a cup of diluted bleach into the drain line periodically to prevent algae growth.

A blocked condensate drain line is a common and easily preventable issue.

When to Call a Professional HVAC Technician

While some troubleshooting steps can be performed safely by homeowners, certain problems require the expertise and tools of a qualified HVAC technician. Call a professional if:

You are uncomfortable working with electricity or gas.
You suspect a refrigerant leak. Refrigerant handling requires specialized equipment and licensing.
You suspect a problem with the compressor, blower motor, or control board.
You are unable to diagnose the problem after following the troubleshooting steps outlined above.
The breaker trips repeatedly.
You smell gas.
The furnace or AC unit is making loud or unusual noises.
You suspect a problem with the ductwork that requires extensive repairs or modifications.

Attempting to repair complex HVAC components without proper training and equipment can be dangerous and can void your warranty.

Preventative Maintenance

The best way to avoid HVAC problems is to perform regular preventative maintenance. Consider the following:

Annual Professional Tune-Up: Schedule an annual tune-up with a qualified HVAC technician. They will inspect and clean the system, check refrigerant levels, lubricate moving parts, and identify potential problems before they become major issues.
Regular Filter Changes: Replace your air filter every 1-3 months, depending on usage and air quality.
Keep the Outdoor Unit Clean: Regularly clear debris from around the outdoor AC unit.
Monitor System Performance: Pay attention to how your system is performing. If you notice any changes in heating or cooling efficiency, or any unusual noises, call a professional for an inspection.

By following these troubleshooting steps and implementing a preventative maintenance plan, you can keep your Carrier 3.5 ton AC unit and gas furnace running efficiently and reliably for years to come. Remember, safety is always the top priority. When in doubt, call a professional HVAC technician.
