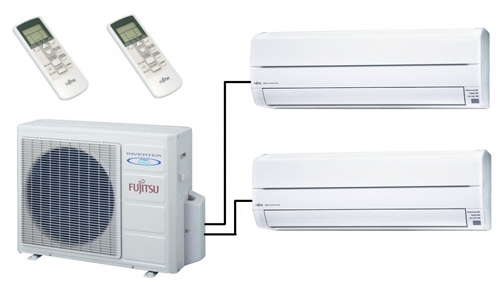

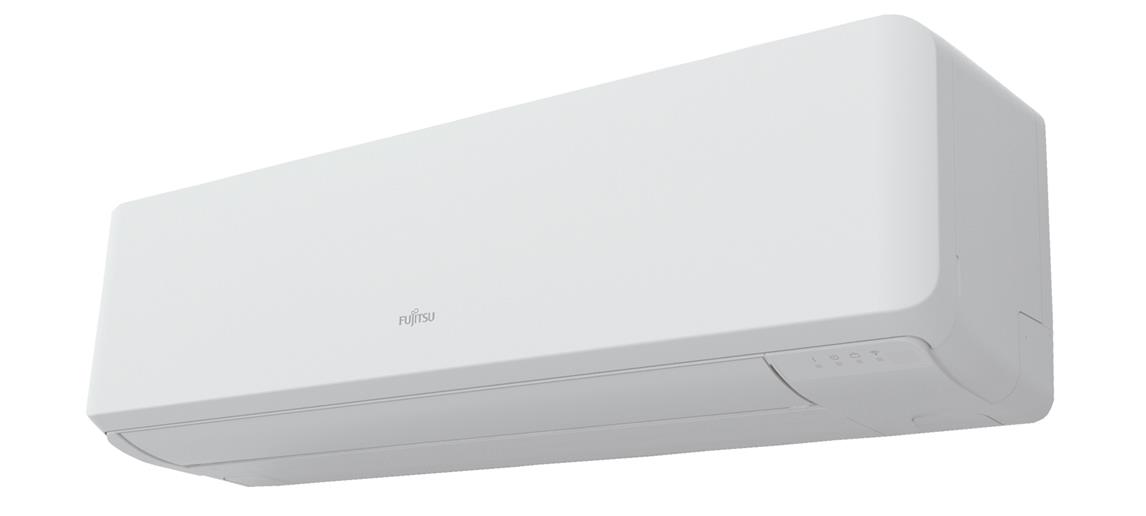

Fujitsu 24 000 Btu Mini Split

Mini-split air conditioners, like the Fujitsu 24,000 BTU model, offer efficient and targeted cooling. However, like any appliance, they can occasionally experience problems. This guide provides a structured approach to troubleshooting common issues, empowering you to identify and potentially resolve them safely. Remember, when in doubt, always consult a qualified HVAC technician. Your safety and the longevity of your unit are paramount.

Initial Assessment: Is Your Fujitsu Mini-Split Not Working?

Before diving into complex troubleshooting, take a moment to observe the issue carefully. What exactly is happening? This initial observation will guide your troubleshooting process.

Is the unit completely unresponsive? No lights, no fan, no anything.
Is the unit powering on, but not cooling (or heating)? The fan might be running, but the air isn't the right temperature.
Is the unit making unusual noises? Banging, hissing, or rattling sounds can indicate specific problems.
Is the unit cycling on and off frequently? Short cycling reduces efficiency and can indicate underlying issues.
Is there ice buildup on the outdoor unit? This is a common problem, especially in heating mode.
Is the unit displaying an error code? Note down the error code – it's crucial for diagnosis.

Understanding the specific symptoms is the first step towards a successful resolution.

Step 1: The Power Supply – The Foundation of Operation

The most common and often overlooked problem is the power supply. Let's check the basics:

1.1. Confirm the Power Source

Check the Circuit Breaker: Locate the circuit breaker dedicated to your mini-split (it should be clearly labelled in your electrical panel). Ensure it hasn't tripped. If it has, reset it. If it trips again immediately, do not keep resetting it. This indicates a significant electrical fault that requires professional attention.
Inspect the Power Cord (if applicable): Some smaller mini-splits might have a power cord. Ensure it's securely plugged into the wall outlet and that the cord isn't damaged.
Test the Outlet: Plug another device into the same outlet to confirm it's working. If the other device doesn't work, the problem lies with the outlet itself, not the mini-split. Contact an electrician to repair the outlet.

1.2. Remote Control Batteries

Believe it or not, a dead remote can mimic a malfunctioning unit!

Replace the Batteries: Insert fresh batteries into the remote control.
Test the Remote: Aim the remote directly at the mini-split and try turning it on. Listen for a beep or see if the indicator light on the unit responds.
Check the Remote's Display: Ensure the display is working correctly and that no buttons are stuck.

If the power supply and remote control are functioning correctly, move on to the next step.

Step 2: Settings and Operational Modes

Sometimes, the problem isn't a malfunction, but simply an incorrect setting.

2.1. Verify the Mode and Temperature

Check the Mode: Ensure the unit is set to the correct mode – cooling (snowflake), heating (sun), or fan (fan icon). Accidentally setting it to fan mode will result in no heating or cooling.
Set the Temperature: Make sure the temperature setting is appropriate. If it's set too high in cooling mode, or too low in heating mode, the unit may not operate as expected.
Avoid "Auto" Mode Initially: While "Auto" mode is convenient, it can sometimes be unpredictable. Start by manually selecting the desired mode and temperature.

2.2. Timer and Sleep Functions

Timer and sleep functions can inadvertently prevent the unit from operating correctly.

Disable Timer Functions: Ensure no timers are set that might be turning the unit off or on at unexpected times. Consult your user manual for instructions on disabling timer functions.
Disable Sleep Mode: Sleep mode gradually adjusts the temperature overnight. Make sure it's not interfering with your desired settings.

2.3. Louver Position

Incorrect louver positioning can restrict airflow and affect performance.

Adjust the Louvers: Ensure the louvers (the adjustable fins that direct airflow) are positioned correctly for optimal air circulation. They shouldn't be blocked by furniture or curtains.

If the settings are correct and the unit still isn't functioning properly, proceed to the next step.

Step 3: Airflow and Filter Maintenance

Restricted airflow is a common cause of mini-split problems.

3.1. Clean the Air Filters

Dirty air filters restrict airflow, reduce efficiency, and can even cause the unit to overheat.

Locate the Air Filters: The air filters are typically located behind a removable panel on the indoor unit. Consult your user manual for their exact location.
Remove the Filters: Carefully remove the air filters.
Clean the Filters: Vacuum the filters thoroughly to remove dust and debris. If they're heavily soiled, wash them with mild soap and water. Allow them to dry completely before reinstalling.
Reinstall the Filters: Reinstall the clean, dry air filters.
Clean Filters Regularly: As a general rule, clean the air filters every 1-3 months, depending on usage and air quality.

3.2. Check for Obstructions

Ensure nothing is blocking the airflow to or from the indoor and outdoor units.

Indoor Unit: Make sure furniture, curtains, or other objects aren't blocking the air intake or outlet of the indoor unit.
Outdoor Unit: Remove any leaves, debris, or vegetation that might be blocking the outdoor unit. Ensure there's adequate clearance around the unit for proper ventilation.

Step 4: Examining the Outdoor Unit (Proceed with Caution!)

Warning: Working on the outdoor unit involves potential electrical hazards. If you are not comfortable working with electrical components, consult a qualified HVAC technician. Never open the outdoor unit's control panel unless you are completely certain you have disconnected the power at the circuit breaker.

4.1. Visual Inspection

Perform a careful visual inspection of the outdoor unit.

Check for Ice Buildup: If the unit is operating in heating mode and you notice ice buildup on the coils, it could indicate a defrosting problem or low refrigerant. Turn off the unit and allow the ice to melt naturally. If the problem persists, contact a technician.
Inspect the Fan: Ensure the fan blades are clean and free of obstructions. Carefully remove any debris. Never insert your fingers into the fan while the unit is powered on.
Look for Leaks: Check for any signs of refrigerant leaks, such as oily residue or hissing sounds. If you suspect a refrigerant leak, do not attempt to repair it yourself. Refrigerant is a hazardous substance that requires specialized handling. Contact a qualified HVAC technician immediately.
Check the Copper Lines: Inspect the copper lines connecting the indoor and outdoor units for any kinks or damage. Kinks can restrict refrigerant flow.

4.2. Cleaning the Outdoor Unit (If Accessible and Safe)

Proceed only if you are comfortable and can safely access the outdoor unit. Always disconnect the power at the circuit breaker before cleaning.

Remove Debris: Use a soft brush or vacuum cleaner to remove any leaves, debris, or dirt from the exterior of the unit.
Clean the Coils (If Accessible): If you can safely access the coils (the fins on the outdoor unit), gently clean them with a soft brush or a fin comb. Be careful not to damage the delicate fins. You can also use a garden hose with a gentle spray nozzle to rinse the coils. Avoid using high-pressure water, as it can damage the fins.

Step 5: Error Codes – Deciphering the Signals

Many Fujitsu mini-split models display error codes that can help pinpoint the problem.

Consult Your User Manual: Your user manual will list the meaning of each error code. Look up the code displayed on your unit.
Troubleshooting Based on the Error Code: The user manual will often provide specific troubleshooting steps for each error code. Follow these steps carefully.
Common Error Codes: Some common error codes relate to sensor failures, refrigerant leaks, or compressor problems. These typically require professional attention.

When to Call a Professional

While this guide provides basic troubleshooting steps, certain problems require the expertise of a qualified HVAC technician. Never attempt repairs that you are not comfortable with or that involve working with electrical components, refrigerant, or gas lines.

Call a professional if you encounter any of the following:

Refrigerant Leaks: Handling refrigerant requires specialized equipment and training.
Electrical Issues: Any electrical problems beyond checking the circuit breaker or power cord should be handled by a qualified electrician.
Compressor Problems: The compressor is a complex and critical component of the mini-split system. Repairs should only be performed by a professional.
Sensor Failures: Replacing sensors requires specialized knowledge and equipment.
Unusual Noises: Loud banging, hissing, or rattling noises can indicate serious mechanical problems.
Persistent Problems: If you've tried the troubleshooting steps outlined above and the problem persists, it's time to call a professional.
If You Are Unsure: When in doubt, always consult a qualified HVAC technician. It's better to be safe than sorry.

By following these steps and knowing when to call for professional help, you can keep your Fujitsu 24,000 BTU mini-split running efficiently for years to come. Remember, preventative maintenance, such as regular filter cleaning, is key to minimizing problems and extending the life of your unit.
