Gas Fireplace Gas Valve

One of the most frustrating experiences for homeowners is when their gas fireplace refuses to ignite. You've adjusted the thermostat, checked the pilot light, and still… nothing. The culprit often lies within the gas valve, a critical component responsible for regulating the flow of gas to your fireplace. Before you call a professional, let's explore some common problems and DIY solutions you can safely attempt.

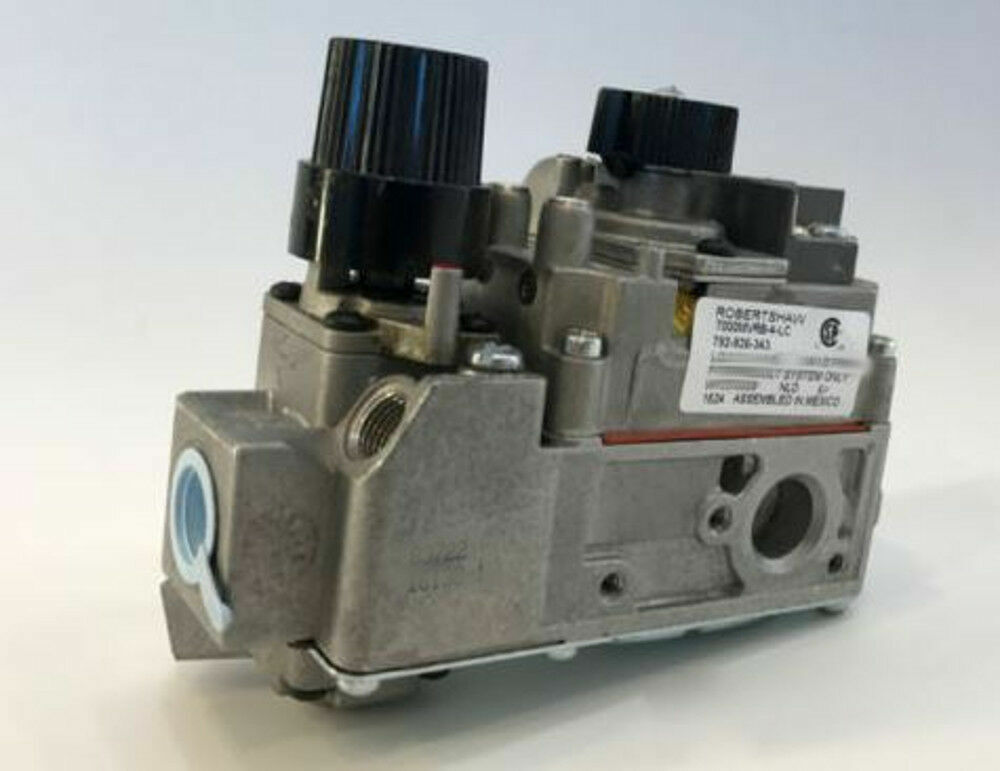

Understanding Your Gas Valve

The gas valve is the heart of your fireplace's gas system. It controls the flow of natural gas or propane to the burner, allowing for ignition and sustained flames. Modern gas fireplaces typically use a millivolt gas valve, which generates a small electrical current from the pilot light’s heat. This current energizes a solenoid, which opens the main gas valve. Other types of valves exist, but millivolt systems are the most common.

Common Gas Valve Issues & Troubleshooting Steps

Here's a breakdown of common issues and a step-by-step guide to diagnosing and potentially fixing them:

1. Pilot Light Won't Stay Lit

This is a very common problem. The pilot light is essential for heating the thermocouple (or thermopile) that generates the millivolt current needed to open the main gas valve.

Diagnosis:

1. Check the Gas Supply: Ensure your main gas line is turned on. Check other gas appliances in your home to confirm they are working.
2. Inspect the Pilot Orifice: A dirty or partially clogged pilot orifice can restrict gas flow, causing the pilot light to be weak or unstable.
3. Thermocouple/Thermopile Issues: The thermocouple (or thermopile in some systems) is responsible for generating the electrical current that keeps the gas valve open. If it's faulty, the valve will close as soon as you release the pilot knob.

DIY Fixes:

1. Cleaning the Pilot Orifice:
   • Safety First: Turn off the gas supply to the fireplace.
   • Locate the pilot assembly. It's usually a small metal tube with a tiny opening (the orifice). Consult your fireplace manual for the exact location.
   • Carefully disconnect the pilot tubing from the orifice (if possible).
   • Use a thin wire (like a guitar string or a needle) or a specialized pilot orifice cleaning tool to gently clear any debris from the orifice. Do not enlarge the opening!
   • Reconnect the tubing and turn the gas supply back on.
   • Attempt to relight the pilot light.
2. Checking and Cleaning the Thermocouple/Thermopile:
   • Safety First: Turn off the gas supply to the fireplace.
   • Locate the thermocouple/thermopile. It's usually a small, slender metal rod positioned in the pilot flame.
   • Visually inspect the thermocouple/thermopile for any signs of damage, such as corrosion or cracks.
   • Clean the thermocouple/thermopile with a fine-grit sandpaper or steel wool to remove any soot or deposits.
   • Ensure the thermocouple/thermopile is properly positioned in the pilot flame. The tip should be fully engulfed in the flame.
   • Turn the gas supply back on and attempt to relight the pilot.

When to Call a Professional:

• If cleaning the pilot orifice or thermocouple/thermopile doesn't solve the problem.
• If you suspect a gas leak.
• If the thermocouple/thermopile is visibly damaged.

2. Main Burner Won't Ignite After Pilot is Lit

The pilot light is on, but when you turn up the fireplace, the main burner refuses to ignite. This indicates a problem with the gas valve's ability to open and allow gas to flow to the burner.

Diagnosis:

1. Check the Thermocouple/Thermopile Voltage: Use a multimeter to measure the voltage generated by the thermocouple/thermopile. A healthy thermocouple should produce around 20-30 millivolts, while a thermopile should produce around 600-750 millivolts.
2. Inspect the Wiring: Check the wiring connections between the thermocouple/thermopile, the gas valve, and the thermostat (or remote receiver). Look for loose connections, corrosion, or damaged wires.
3. Check the Gas Valve Solenoid: The solenoid is an electromagnetic coil that opens the gas valve when energized. If the solenoid is faulty, the valve won't open.

DIY Fixes:

1. Testing Thermocouple/Thermopile Voltage:
   • Safety First: Turn off the gas supply to the fireplace.
   • Locate the thermocouple/thermopile terminals on the gas valve.
   • Set your multimeter to the millivolt (mV) range.
   • Connect the multimeter probes to the thermocouple/thermopile terminals.
   • Light the pilot light and hold it for the required time (usually around 30-60 seconds).
   • Observe the voltage reading on the multimeter. If the voltage is below the specified range (20-30 mV for thermocouple, 600-750 mV for thermopile), the thermocouple/thermopile may need to be replaced.
2. Tightening Wiring Connections:
   • Safety First: Turn off the gas supply to the fireplace.
   • Visually inspect all wiring connections associated with the gas valve.
   • Gently tighten any loose connections using a screwdriver or pliers.
   • Ensure the wires are securely attached to the terminals.
3. Cleaning Electrical Contacts: Corrosion on electrical contacts can impede the flow of current.
   • Safety First: Turn off the gas supply to the fireplace.
   • Disconnect the wiring from the gas valve, thermocouple/thermopile, and thermostat/remote receiver.
   • Use a wire brush or electrical contact cleaner to remove any corrosion or oxidation from the contacts.
   • Reconnect the wiring securely.

When to Call a Professional:

• If the thermocouple/thermopile voltage is low, even after cleaning.
• If you suspect a faulty gas valve solenoid. Testing this requires specialized equipment and knowledge.
• If you are uncomfortable working with electrical wiring.

3. Flame is Weak or Yellow

A weak or yellow flame indicates incomplete combustion, which can be caused by several factors, including a problem with the gas valve.

Diagnosis:

1. Check the Air Shutter: The air shutter controls the amount of air that mixes with the gas. If the air shutter is closed too far, the flame will be yellow and sooty.
2. Check for Obstructions: Inspect the burner ports for any obstructions, such as dust, debris, or spider webs.
3. Check the Gas Pressure: Low gas pressure can also cause a weak or yellow flame.

DIY Fixes:

1. Adjusting the Air Shutter:
   • Locate the air shutter. It's usually a metal collar or plate near the burner.
   • Loosen the screw that holds the air shutter in place.
   • Adjust the air shutter to allow more air to mix with the gas. A slightly open air shutter is usually sufficient.
   • Tighten the screw to secure the air shutter in place.
   • Observe the flame. It should be blue and crisp. If it's still yellow, adjust the air shutter further.
2. Cleaning the Burner Ports:
   • Safety First: Turn off the gas supply to the fireplace.
   • Use a wire brush or a vacuum cleaner with a brush attachment to remove any dust, debris, or spider webs from the burner ports.
   • Ensure all the ports are clear and unobstructed.

When to Call a Professional:

• If adjusting the air shutter or cleaning the burner ports doesn't solve the problem.
• If you suspect low gas pressure. This requires specialized equipment to measure.
• If you notice a strong odor of gas, even after shutting off the fireplace.

4. Fireplace Turns On and Off Intermittently

A fireplace that cycles on and off suggests an unstable gas supply or a failing component.

Diagnosis:

1. Thermocouple/Thermopile Fluctuations: Inconsistent voltage readings from the thermocouple/thermopile can cause the gas valve to open and close erratically.
2. Gas Valve Issues: Internal problems within the gas valve itself can lead to intermittent operation.
3. Pilot Flame Instability: A wavering or inconsistent pilot flame may not provide adequate heat to the thermocouple/thermopile.

DIY Fixes:

1. Pilot Flame Adjustment:
   • Refer to your fireplace owner's manual to locate the pilot flame adjustment screw.
   • Carefully adjust the screw to optimize the pilot flame's size and stability. The flame should fully engulf the thermocouple/thermopile.
2. Wiring Inspection: Double-check all wiring connections for looseness or corrosion, as described previously.

When to Call a Professional:

• If pilot flame adjustment doesn't resolve the problem.
• If intermittent operation persists despite voltage checks and wiring inspections. This often points to a failing gas valve requiring replacement.

Safety Precautions

Working with gas appliances can be dangerous. Always take the following precautions:

• Turn off the gas supply to the fireplace before performing any maintenance or repairs.
• Never smoke or use open flames near gas appliances.
• Use caution when working with electrical components.
• If you smell gas, immediately evacuate the area and call your gas company or a qualified technician.
• Consult your fireplace owner's manual for specific instructions and safety guidelines.

When to Call a Professional

While some gas fireplace issues can be resolved with simple DIY fixes, certain problems require the expertise of a qualified technician. Always call a professional if:

• You smell gas.
• You are uncomfortable working with gas appliances.
• You suspect a gas leak.
• You are unable to diagnose the problem.
• The gas valve is visibly damaged or corroded.
• You need to replace the gas valve. This is best left to a professional due to the complexities of gas line connections and safety regulations.

By understanding the basics of gas valve operation and following these troubleshooting steps, you can potentially save yourself time and money. However, remember that safety is paramount. When in doubt, always call a qualified technician.

Disclaimer: This article provides general troubleshooting information and should not be considered a substitute for professional advice. Always consult with a qualified technician for any gas appliance repairs.
