Trane Xl 1200 Specifications

The Trane XL1200 was a popular air conditioner model known for its reliability and efficiency during its time. While no longer in production, many units are still in operation. This guide provides detailed specifications and information to help you understand, maintain, or potentially replace your Trane XL1200.

Understanding the Basics

Before diving into specific numbers, let's cover some fundamental AC concepts:

BTU (British Thermal Unit): This measures the cooling capacity of the air conditioner. Think of it as how much heat the AC can remove from your home per hour. Higher BTU means more cooling power.
SEER (Seasonal Energy Efficiency Ratio): This rating indicates how efficiently the AC uses energy over an entire cooling season. A higher SEER rating means lower energy bills. It's like miles per gallon for your car.
Refrigerant: The substance that absorbs and releases heat, enabling the cooling process. Think of refrigerant as the "blood" of your AC system, carrying heat from inside to outside. The XL1200 typically used R-22 refrigerant, but more on that later.

Trane XL1200 Specifications

Here's a breakdown of the key specifications you might find on a Trane XL1200 unit:

Cooling Capacity (BTU/h)

The XL1200 was available in a range of cooling capacities to suit different-sized homes. Common sizes include:

24,000 BTU/h (2 tons): Suitable for smaller homes or apartments.
30,000 BTU/h (2.5 tons): For medium-sized homes.
36,000 BTU/h (3 tons): Another common size for medium homes.
42,000 BTU/h (3.5 tons): For larger homes.
48,000 BTU/h (4 tons): For larger homes or those with poor insulation.
60,000 BTU/h (5 tons): For very large homes or commercial spaces.

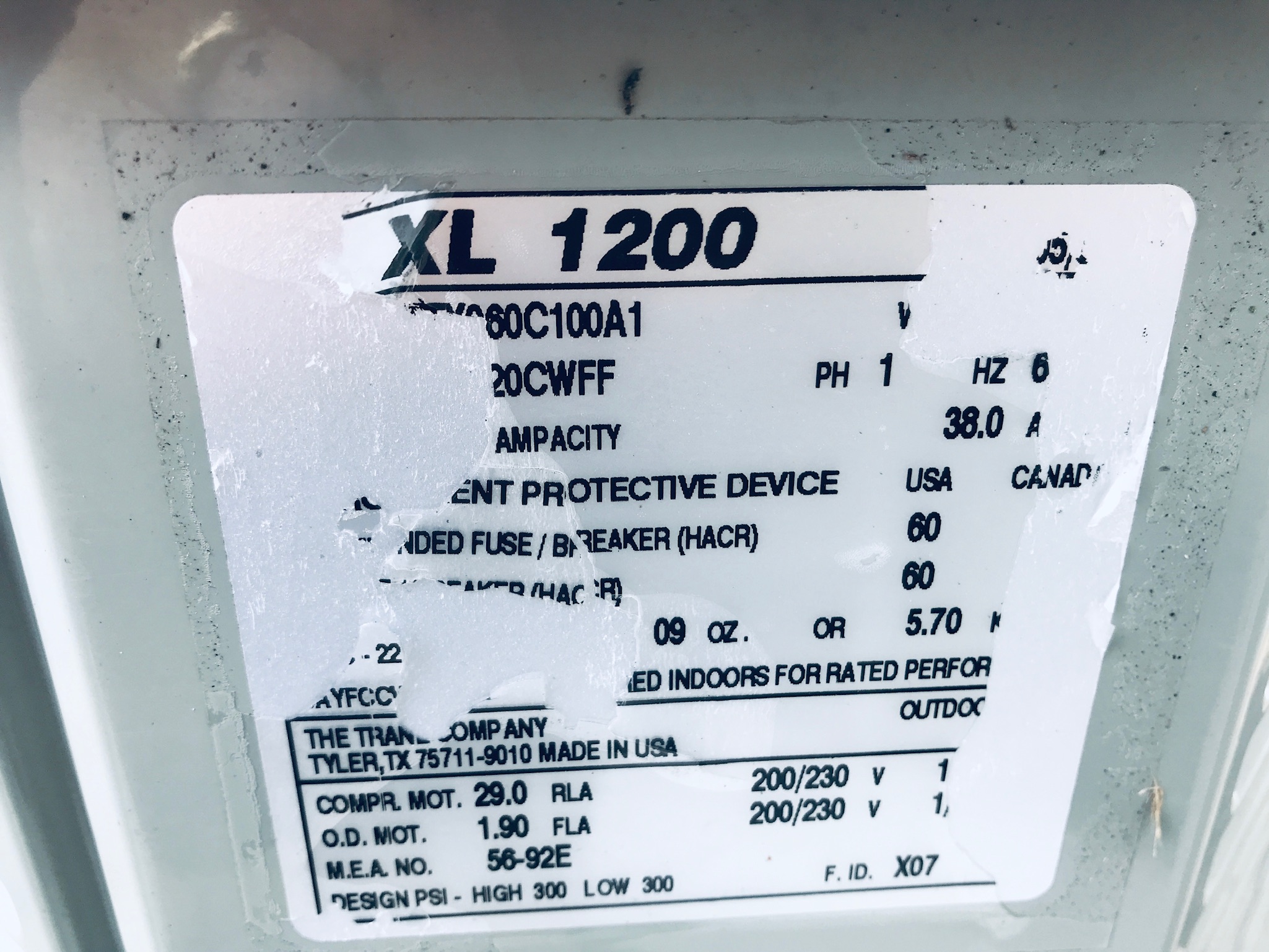

Important Note: The exact BTU rating of your specific XL1200 unit will be listed on the unit's nameplate. Look for a sticker or plate, usually located on the side of the outdoor unit.

SEER Rating

The Trane XL1200 typically had a SEER rating ranging from 10 to 12. This was a good rating for its time, but modern air conditioners often achieve SEER ratings of 16 or higher. Higher SEER means greater energy savings. Keep this in mind when considering repairs versus replacement.

Refrigerant Type

The Trane XL1200 used R-22 refrigerant. This is a crucial point because R-22 has been phased out in the United States due to its ozone-depleting properties. Production and import of R-22 were banned in 2020. This means:

R-22 is expensive and increasingly difficult to find. If your XL1200 needs refrigerant, the cost of R-22 will likely be significantly higher than alternative refrigerants.
Repairing a refrigerant leak can be very costly. The price of R-22 could make repairs uneconomical.
Replacing the unit might be a more cost-effective long-term solution. Consider the total cost of repair (including R-22) versus the cost of a new, more efficient unit with R-410A or R-32 refrigerant.

Voltage

The XL1200 units are typically 208-230 volts. This is the standard voltage for most residential air conditioners in North America. Make sure your home's electrical system is compatible before attempting any repairs or replacements.

Compressor Type

The XL1200 used a reciprocating compressor. This type of compressor is known for its durability but can be less energy-efficient than newer scroll compressor designs. Scroll compressors are quieter and more efficient.

Dimensions and Weight

The dimensions and weight of the XL1200 varied slightly depending on the specific BTU rating. However, a typical unit might be approximately:

Height: 25-35 inches
Width: 30-40 inches
Depth: 30-40 inches
Weight: 200-300 pounds

Important Note: These are approximate dimensions. Measure your specific unit if you need to replace it and want to ensure the new unit fits in the same space.

Operating Sound Level

The XL1200's operating sound level was typically in the range of 70-75 decibels. Modern air conditioners are often quieter, with some models operating below 60 decibels. Consider noise levels if your AC unit is located near bedrooms or living areas.

Maintenance and Troubleshooting

Regular maintenance is crucial for extending the life of your Trane XL1200 and ensuring optimal performance. Here are some essential tips:

Clean or replace air filters regularly (every 1-3 months). Dirty air filters restrict airflow, making the AC work harder and reducing efficiency.
Clean the outdoor unit's coils. Use a garden hose to gently spray away dirt and debris. Be careful not to damage the fins.
Ensure proper airflow around the outdoor unit. Remove any plants or obstructions that could block airflow.
Schedule annual professional maintenance. A qualified HVAC technician can inspect the system, check refrigerant levels, and perform other necessary maintenance tasks.

Common problems with the Trane XL1200 include:

Refrigerant leaks: Due to the age of the units, leaks are a common problem. As mentioned earlier, R-22 refrigerant is expensive and difficult to obtain.
Compressor failure: The compressor is the heart of the AC system, and failure can be costly to repair.
Fan motor problems: The fan motor can fail due to age or wear and tear.
Electrical issues: Wiring problems or faulty capacitors can also cause the AC to malfunction.

Repair vs. Replacement: Making the Right Decision

If your Trane XL1200 is experiencing problems, you'll need to decide whether to repair it or replace it. Here's a guide to help you make the right choice:

Consider repairing if:

The problem is minor and inexpensive to fix (e.g., a faulty capacitor).
The unit is relatively new and has been well-maintained. However, given the age of most XL1200 units, this is unlikely.

Consider replacing if:

The unit is old (15+ years) and nearing the end of its lifespan.
The unit requires R-22 refrigerant, and the cost of refrigerant is prohibitive.
The unit has a major problem, such as a compressor failure.
You want to improve energy efficiency and lower your energy bills. Modern AC units are significantly more efficient than the XL1200.
You want to upgrade to a more environmentally friendly refrigerant like R-410A or R-32.

Calculating the Payback Period:

To make a financially sound decision, calculate the payback period for a new, more efficient AC unit. This involves comparing the cost of the new unit to the energy savings you'll realize over time. Consult with an HVAC professional to get an estimate of potential energy savings.

Finding Replacement Parts

While the Trane XL1200 is no longer in production, some replacement parts may still be available from online retailers or HVAC supply stores. However, availability may be limited, and prices may be higher than for parts for newer models.

When searching for replacement parts, have the following information readily available:

The unit's model number. This is typically found on the nameplate.
The specific part number. If possible, locate the part number on the failed component.

Conclusion

The Trane XL1200 was a reliable air conditioner in its day. However, due to its age, R-22 refrigerant, and lower SEER rating compared to modern units, replacement is often the more practical long-term solution when significant repairs are needed. Carefully weigh the costs of repair versus replacement, considering energy savings and environmental factors, to make the best decision for your home and budget. Contact a qualified HVAC professional for a thorough evaluation and recommendations.
