What Is G Wire On Thermostat

Frequently Asked Questions: Understanding the G Wire on Your Thermostat

This article answers common questions about the "G" wire in your thermostat, helping you understand its purpose and troubleshooting any issues related to it. We aim to provide clear and concise information without getting bogged down in technical jargon.

Question 1: What exactly is the G wire on a thermostat?

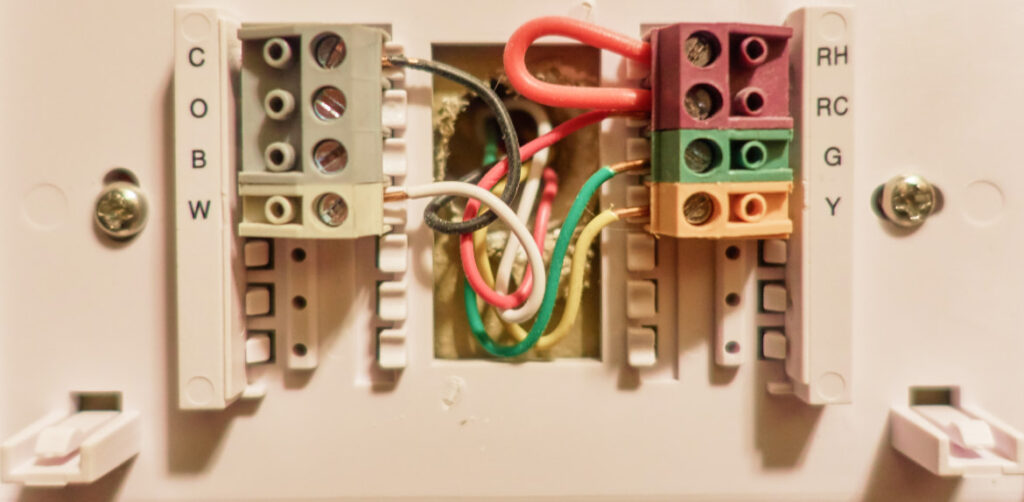

The G wire on your thermostat controls the fan in your HVAC (Heating, Ventilation, and Air Conditioning) system. It's usually a green wire. When the thermostat signals for the fan to turn on, it sends a signal through the G wire to the air handler, which then activates the fan.

Think of it like this: the G wire is the dedicated line for fan control only. It doesn't control heating or cooling directly, just the blower that circulates air.

Question 2: What does the G wire actually do for my HVAC system?

The G wire is crucial for several functions:

• Circulating Air: Its primary purpose is to control the fan to circulate air throughout your home. This can be done independently of heating or cooling.
• "Fan On" Mode: It enables you to set your thermostat to "Fan On" mode, where the fan runs continuously, even when heating or cooling isn't needed. This helps to even out temperature differences between rooms and improve air filtration.
• Ventilation: By running the fan, the G wire helps to bring in fresh air if your system is equipped with a fresh air intake.
• Improving Efficiency (Sometimes): In some systems, continuously running the fan can improve overall HVAC efficiency by ensuring consistent airflow and preventing stagnant air pockets. However, this can also increase energy consumption if not used judiciously.

Question 3: Why would I want to use the "Fan On" mode controlled by the G wire?

There are several reasons why you might choose to use the "Fan On" mode:

• Even Temperature Distribution: If you have rooms that are significantly warmer or cooler than others, running the fan continuously can help to distribute the air more evenly and reduce temperature differences.
• Improved Air Filtration: Continuously running the fan forces air through your air filter, removing dust, pollen, and other allergens from the air. This can be particularly beneficial for people with allergies or respiratory problems.
• Quieter Operation: Some people find the constant hum of the fan to be a soothing background noise.
• Reduced Static Electricity: Circulating air can help to reduce static electricity buildup in your home, especially during dry winter months.

Important Note: While "Fan On" mode can be beneficial, it also increases energy consumption. Weigh the benefits against the increased cost before using it regularly. Consider using it only during specific times of day or when needed.

Question 4: What happens if the G wire isn't connected properly or is missing?

If the G wire isn't connected properly or is missing, you'll likely experience the following issues:

• Fan Won't Run in "Fan On" Mode: The most obvious symptom is that the fan won't turn on when you select the "Fan On" mode on your thermostat.
• Limited HVAC Functionality: Your heating and cooling might still work, but you won't have independent control over the fan.
• Potential for Uneven Heating/Cooling: Without the ability to circulate air independently, you might experience uneven heating and cooling throughout your home.
• Troubleshooting Difficulties: A missing or incorrectly connected G wire can make troubleshooting HVAC problems more difficult, as it eliminates a crucial control function.

Before assuming a faulty G wire, double-check the thermostat settings to ensure "Fan On" mode is properly selected. Also, inspect the wire connections at both the thermostat and the air handler.

Question 5: How can I troubleshoot a G wire issue?

Troubleshooting a G wire issue can involve a few steps. Always turn off the power to your HVAC system at the breaker before working with any wiring.

1. Visual Inspection: Carefully inspect the G wire at both the thermostat and the air handler. Look for loose connections, frayed wires, or signs of damage. Ensure the wire is securely connected to the "G" terminal on both devices.
2. Continuity Test: Use a multimeter to test the continuity of the G wire. Disconnect the wire from both the thermostat and the air handler. Set the multimeter to the continuity setting (often indicated by a sound wave symbol). Place one probe on each end of the G wire. If the multimeter doesn't show continuity (no beep or a reading of "OL" for "Open Loop"), the wire is likely broken or damaged and needs to be replaced.
3. Terminal Check: Ensure the "G" terminal on both the thermostat and the air handler is in good condition. Look for corrosion or damage. If the terminal is damaged, it may need to be replaced.
4. Thermostat Settings: Double-check your thermostat settings to make sure the "Fan On" mode is enabled and that there are no scheduling conflicts that might be preventing the fan from running.
5. Air Handler Inspection: In some cases, the problem might not be with the G wire itself, but with the fan relay or control board in the air handler. Consult your air handler's manual for troubleshooting guidance or contact a qualified HVAC technician.
6. Professional Assistance: If you're not comfortable working with electrical wiring or HVAC systems, it's best to call a qualified HVAC technician to diagnose and repair the problem.

Question 6: Can I replace the G wire myself, and what gauge wire should I use?

If you're comfortable working with low-voltage wiring and have the necessary tools, you can often replace the G wire yourself. However, always disconnect power at the breaker first.

Here's what you need to know:

• Wire Gauge: The wire gauge typically used for thermostat wiring, including the G wire, is 18 or 22 gauge. Using a thicker wire than necessary won't hurt anything, but it can be more difficult to work with. Using a thinner wire could cause issues.
• Wire Type: Use thermostat wire, which is typically stranded copper wire with a color-coded insulation.
• Safety First: Ensure the power is OFF at the breaker before starting any wiring work.
• Careful Connections: Make sure the connections are secure at both the thermostat and the air handler. Use wire strippers to strip the insulation and ensure a good, clean connection.
• Labeling: Before disconnecting the old wire, label it so you know exactly where it goes. You can use masking tape and a pen.
• Running the Wire: When running the new wire, follow the same path as the old wire. Secure the wire to prevent it from hanging loose or getting caught on anything.

When in doubt, hire a qualified HVAC technician. Improper wiring can damage your HVAC system or create a fire hazard.

Question 7: My smart thermostat has different wiring options. How does the G wire fit into that?

Smart thermostats often have more advanced features and may require different wiring configurations than older thermostats. However, the basic principle of the G wire remains the same: it controls the fan.

Here's how the G wire fits into smart thermostat wiring:

• Standard "G" Terminal: Most smart thermostats will have a "G" terminal that functions the same way as on a traditional thermostat. You'll connect the G wire to this terminal.
• App Configuration: After wiring the thermostat, you'll typically need to configure the thermostat through its app or on-screen interface. This includes specifying which wires are connected and what functions they control. Make sure to correctly identify the G wire during the setup process.
• Advanced Fan Control: Smart thermostats often offer more advanced fan control options, such as scheduling the fan to run at specific times or using the fan to circulate air only when certain rooms are occupied. These features rely on the proper connection and configuration of the G wire.
• Compatibility: Before purchasing a smart thermostat, check its compatibility with your HVAC system. Some smart thermostats may not be compatible with certain types of systems or may require additional wiring or adapters.
• Consult the Manual: Always refer to the smart thermostat's manual for specific wiring instructions. Different models may have slightly different wiring configurations.

If you're unsure about how to wire your smart thermostat, consult a qualified HVAC technician or electrician. Incorrect wiring can damage the thermostat or your HVAC system.
