Why My Gfci Keeps Tripping

Understanding GFCI Trips and Your HVAC System

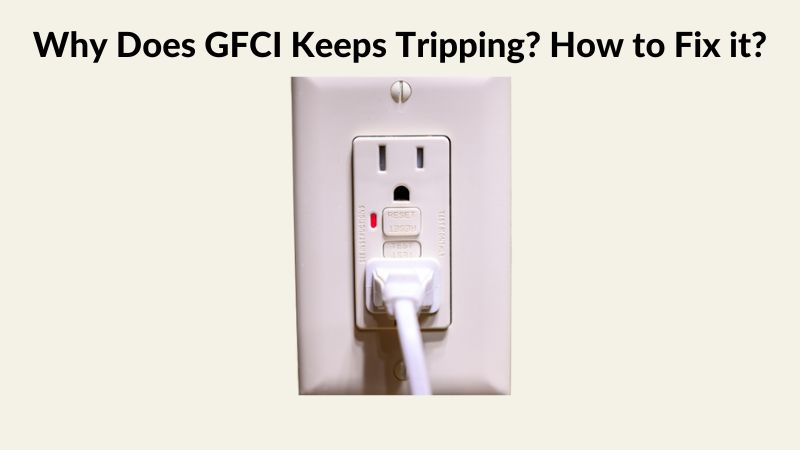

A Ground Fault Circuit Interrupter (GFCI) outlet is a crucial safety device designed to protect you from electrical shock. It constantly monitors the current flowing to and from an appliance. If it detects a difference, indicating that current is leaking to ground (e.g., through a person), it trips the circuit, cutting off the power supply in milliseconds. While GFCIs are lifesavers, frequent tripping can be frustrating, especially when it involves your HVAC system. This guide explores the common reasons why your GFCI might be tripping and how to troubleshoot the issue.

Common Causes of GFCI Trips in HVAC Systems

Several factors can cause a GFCI outlet connected to your HVAC system to trip. Pinpointing the exact cause requires a systematic approach.

1. Ground Faults in the HVAC Unit

A ground fault is the most common reason for a GFCI to trip. This occurs when electricity escapes its intended path and flows to ground, often through the metal casing of your HVAC unit. This can be due to:

Damaged Wiring: Frayed or cracked wires can expose live conductors, leading to ground faults. Inspect the wiring within your HVAC unit and the connections at the GFCI outlet.
Moisture Intrusion: Water can create a conductive path to ground. Condensation within the unit, leaks, or exposure to rain can cause a ground fault. Check for signs of moisture near electrical components.
Faulty Components: A failing compressor, blower motor, or other electrical component can develop a ground fault. These components often require professional testing.

2. Overloaded Circuit

While less common with dedicated HVAC circuits, an overloaded circuit can sometimes trigger a GFCI. This happens when the circuit is drawing more current than it's designed to handle.

Multiple Appliances: If other high-power devices are sharing the same circuit as your HVAC system, the combined load may exceed the circuit's capacity. Try removing other devices to see if the tripping stops.
High Inrush Current: Some HVAC components, like the compressor, require a surge of current when they start. This inrush current can sometimes be enough to trip a sensitive GFCI.

3. Neutral-Ground Faults

A neutral-ground fault occurs when the neutral wire in the circuit is inadvertently connected to the ground wire. This can happen due to wiring errors or faulty equipment.

Wiring Mistakes: Incorrect wiring during installation or repairs can create a neutral-ground fault. Always consult a qualified electrician for any electrical work.
Appliance Faults: Internal faults within the HVAC unit can sometimes cause a neutral-ground connection.

4. Sensitive GFCI Outlets

Some GFCI outlets are more sensitive than others. They may trip even with minor fluctuations in current, even when no actual fault exists.

Older Outlets: Older GFCIs can become overly sensitive over time. Consider replacing the GFCI with a newer model.
Incorrect Type: Using the wrong type of GFCI outlet for the application can also lead to nuisance tripping.

5. External Factors

External factors can sometimes contribute to GFCI trips.

Power Surges: Sudden voltage spikes can damage electrical components and cause ground faults.
Lightning Strikes: A nearby lightning strike can induce current in wiring, potentially tripping a GFCI.

Troubleshooting GFCI Trips: A Step-by-Step Guide

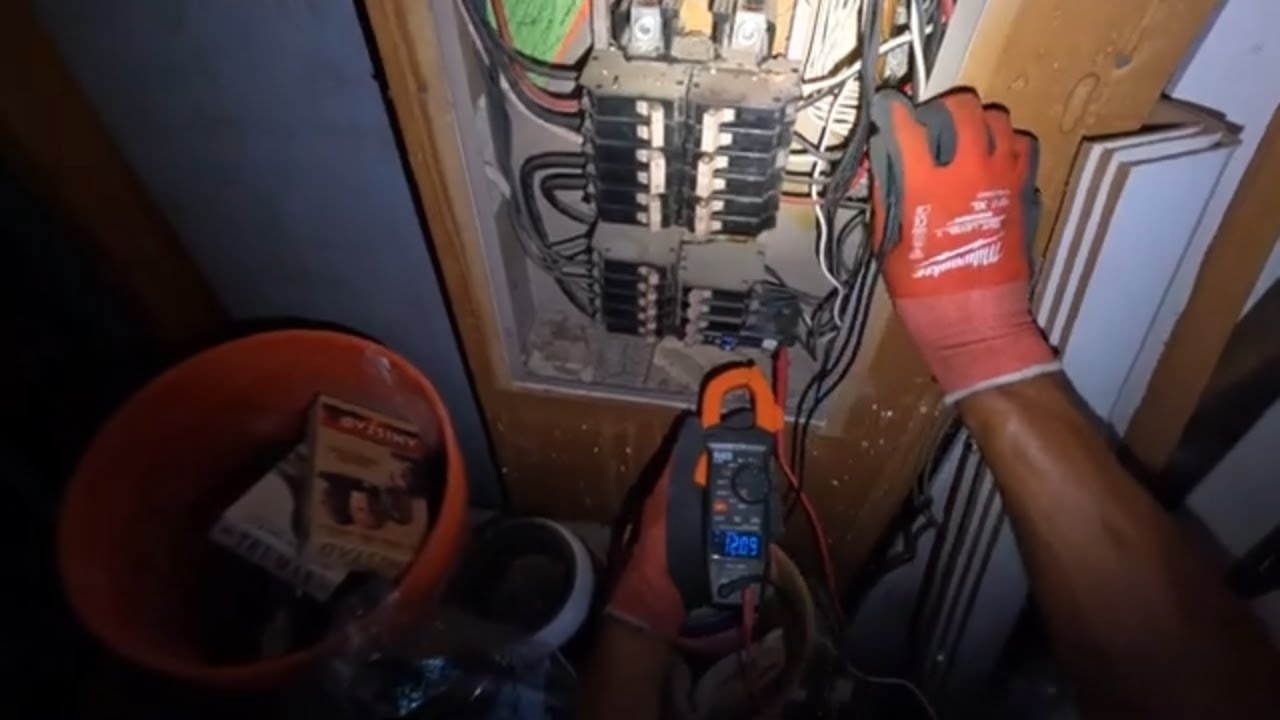

Before attempting any troubleshooting, always disconnect the power supply to the HVAC unit at the breaker box. If you're uncomfortable working with electricity, contact a qualified HVAC technician or electrician.

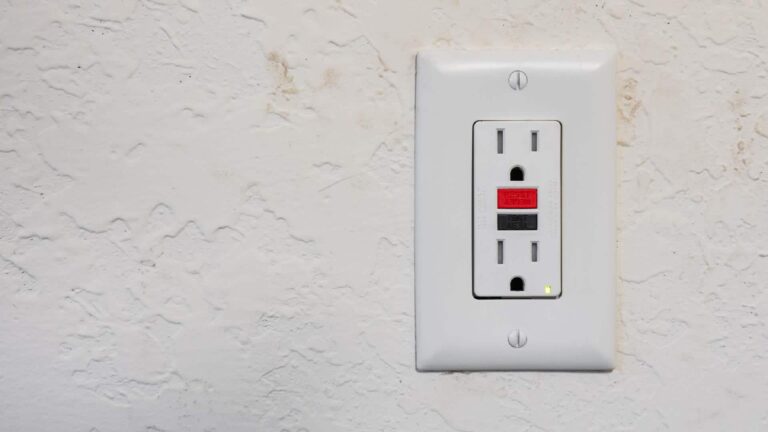

Inspect the GFCI Outlet: Check for any visible damage, loose connections, or signs of corrosion. If the outlet is old or damaged, replace it.
Check the Wiring: Carefully inspect the wiring connected to the GFCI outlet and the HVAC unit. Look for frayed wires, loose connections, or signs of water damage.
Isolate the Problem: If possible, try disconnecting the HVAC unit from the GFCI outlet and plugging in a different appliance. If the GFCI still trips, the problem is likely with the outlet itself or the wiring leading to it. If the GFCI doesn't trip, the problem is likely with the HVAC unit.
Test the HVAC Components: If you suspect a faulty component, use a multimeter to test for continuity between the component and the ground. A reading of zero ohms indicates a ground fault. This step is best left to qualified technicians.
Check for Moisture: Look for signs of moisture within the HVAC unit and around the GFCI outlet. Dry any wet areas and allow them to thoroughly dry before restoring power.
Replace the GFCI Outlet: If you suspect the GFCI outlet is overly sensitive, replace it with a new one. Choose a GFCI outlet that is specifically designed for use with appliances with high inrush currents.

HVAC Systems and GFCI Protection: Best Practices

Here are some best practices for ensuring safe and reliable operation of your HVAC system with GFCI protection:

Dedicated Circuit: Ensure your HVAC system has a dedicated circuit with the appropriate amperage rating. This minimizes the risk of overloading the circuit.
Proper Wiring: Use the correct gauge of wire for the circuit and ensure all connections are tight and secure.
Professional Installation: Have your HVAC system installed by a qualified technician. Proper installation minimizes the risk of wiring errors and other problems.
Regular Maintenance: Schedule regular maintenance for your HVAC system. This can help identify and address potential problems before they lead to GFCI trips.
Surge Protection: Use a surge protector to protect your HVAC system from voltage spikes.

When to Call a Professional

While some GFCI tripping issues can be resolved with simple troubleshooting, others require professional help. Call a qualified HVAC technician or electrician if:

You're uncomfortable working with electricity.
You can't identify the cause of the tripping.
You suspect a faulty component within the HVAC unit.
The GFCI continues to trip after you've tried troubleshooting.

HVAC System Considerations: Brands and Features

When choosing a new HVAC system, consider factors such as energy efficiency (SEER, HSPF, and AFUE ratings), features, and brand reputation. Here are a few popular brands and models to consider:

Carrier: Known for their high-efficiency and innovative features. Look for models with SEER ratings above 20.
Trane: Another reputable brand with a wide range of options. Trane systems are known for their durability and reliability.
American Standard: Offers a good balance of performance and affordability.
Lennox: High-efficiency systems with advanced technology and quiet operation.

When comparing models, pay attention to the warranty offered by the manufacturer. A longer warranty can provide peace of mind and protect your investment. Also consider features like variable-speed blowers, smart thermostats, and zoning systems, which can improve comfort and energy efficiency. For example, investing in a high AFUE furnace can significantly reduce your heating bills.

Cost Considerations

The cost of a new HVAC system can vary widely depending on the size, efficiency, and features. Expect to pay anywhere from $5,000 to $15,000 or more for a complete system installation. Get multiple quotes from different contractors to compare prices and services. Remember to factor in the cost of installation, permits, and any necessary upgrades to your electrical system.

Conclusion

GFCI trips can be a nuisance, but they're also a vital safety feature. By understanding the common causes of GFCI trips and following the troubleshooting steps outlined in this guide, you can often resolve the issue yourself. However, if you're unsure or uncomfortable working with electricity, don't hesitate to call a qualified professional. Choosing the right HVAC system and ensuring it's properly installed and maintained will help prevent future problems and keep your home comfortable and safe.
