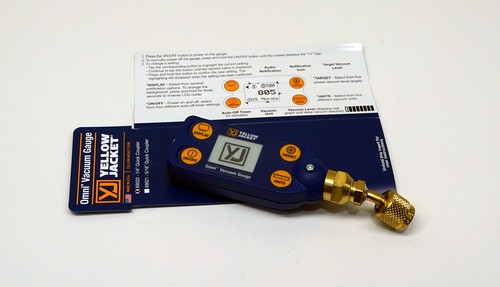

Yellow Jacket 69020 Omni Digital Vacuum Gauge

Imagine this: you're tackling an HVAC project, eager to ensure a leak-free system. You pull out your trusty Yellow Jacket 69020 Omni Digital Vacuum Gauge, ready to achieve that crucial deep vacuum. But instead of displaying a steadily decreasing micron reading, the screen is blank, or shows an erratic error. Frustration mounts, and the project stalls. Don't panic! This guide will walk you through troubleshooting common issues with your vacuum gauge, helping you get back on track, safely and efficiently.

Understanding the Yellow Jacket 69020 Omni Digital Vacuum Gauge

The Yellow Jacket 69020 is a digital vacuum gauge designed for HVAC/R professionals and knowledgeable DIYers. It measures vacuum levels in microns (µm) to ensure proper evacuation of air and moisture from refrigeration systems before charging. It's a precision instrument, and like any tool, it can sometimes malfunction. This guide will focus on common problems and solutions that you can safely attempt. Remember, if at any point you feel uncomfortable or the problem seems complex, it's always best to call a qualified HVAC technician.

Common Issues and Troubleshooting Steps

1. No Power / Blank Display

This is often the most common and simplest issue to resolve. Let's check the basics first:

Step 1: Battery Check: The Yellow Jacket 69020 typically uses batteries. Open the battery compartment (usually on the back) and inspect the batteries.

Visual Inspection: Are the batteries corroded? If so, carefully clean the contacts with a cotton swab dipped in rubbing alcohol. Let it dry completely before inserting new batteries.
Battery Type and Orientation: Make sure you're using the correct type of batteries (usually AA or AAA – check the manual or the battery compartment itself). Also, ensure they are inserted with the correct polarity (+ and -) as indicated.
New Batteries: Even if the batteries look okay, they might be weak. Replace them with a fresh set of batteries to rule out this possibility. This is the first and easiest fix!

Step 2: Power Switch: Verify the power switch is in the "ON" position. It might seem obvious, but sometimes it's easy to overlook.
Step 3: Continuity Test (Advanced): If you have a multimeter and are comfortable using it, you can perform a basic continuity test on the battery contacts after removing the batteries. This confirms that the battery compartment is conducting electricity. If there's no continuity, there might be a broken wire or a faulty contact, requiring professional repair. Do not attempt this if you are not familiar with using a multimeter.

When to Call a Professional: If replacing the batteries and checking the power switch doesn't solve the problem, the issue might be with the internal circuitry. This requires specialized knowledge and tools, so it's best left to a qualified technician.

2. Erratic Readings / Unstable Vacuum Level

If the gauge powers on but displays fluctuating or nonsensical readings, consider these possibilities:

Step 1: Connection Check: The most frequent cause is a loose or leaking connection.

Inspect the Hose Connections: Ensure the vacuum hose is securely attached to both the vacuum pump and the gauge. Use appropriate fittings and tighten them properly.
Check for Leaks: Use a leak detector (electronic or soap bubble solution) to check for leaks around the hose connections, fittings, and the gauge's sensor port. A small leak can significantly affect the vacuum reading.
Consider using a torque wrench to ensure that connections are neither too tight nor too loose.

Step 2: Sensor Contamination: The vacuum sensor is delicate and can be contaminated by oil, moisture, or other debris.

Cleaning the Sensor: Some Yellow Jacket gauges allow for sensor cleaning. Refer to the manual for specific instructions. Generally, this involves carefully flushing the sensor port with a small amount of isopropyl alcohol or a dedicated sensor cleaner. Do not use compressed air! It can damage the sensor.
Drying the Sensor: Allow the sensor to dry completely before reconnecting it to the system.

Step 3: Calibration: Over time, the gauge may require calibration.

Zeroing the Gauge: Many digital vacuum gauges have a "zeroing" or "calibration" function. Consult the manual for the correct procedure. This typically involves exposing the sensor to atmospheric pressure and pressing a button to set the zero point.
Professional Calibration: If zeroing doesn't improve accuracy, the gauge may need to be professionally calibrated by a qualified instrument technician.

Step 4: Vacuum Pump Condition: The vacuum pump itself could be the source of the problem.

Pump Oil: Check the vacuum pump's oil level and condition. Low or contaminated oil can significantly reduce the pump's efficiency. Change the oil according to the pump manufacturer's recommendations.
Pump Leaks: Inspect the vacuum pump for any signs of leaks (oil stains, unusual noises). Leaks can prevent the pump from achieving a deep vacuum.

When to Call a Professional: If cleaning the sensor, calibrating the gauge, and ensuring proper connections don't resolve the erratic readings, the sensor itself might be faulty. Replacing the sensor or sending the gauge for professional repair is often the next step.

3. Slow Pump Down Time

If the gauge is functioning and reading correctly, but the system takes an unusually long time to reach the desired vacuum level, consider these factors:

Step 1: System Size: Larger systems naturally take longer to evacuate than smaller ones. Consider the volume of the system you're working on.
Step 2: Leaks: Even small leaks can significantly increase pump-down time. Re-check all connections and fittings for leaks, as described above.
Step 3: Moisture: Moisture in the system can also slow down the evacuation process. Use a vacuum pump with a built-in gas ballast to help remove moisture. Open the ballast valve slightly to allow the pump to expel moisture more effectively.
Step 4: Restrictions: Check for any restrictions in the vacuum lines or components. Kinked hoses, closed valves, or clogged filters can impede the flow of air.
Step 5: Vacuum Pump Capacity: Ensure your vacuum pump has sufficient capacity for the size of the system. Using an undersized pump will result in extended pump-down times.

When to Call a Professional: If you've eliminated leaks, moisture, and restrictions, and the pump-down time is still excessively long, the vacuum pump might be failing. A technician can diagnose the pump's condition and recommend repairs or replacement.

4. Error Messages

The Yellow Jacket 69020 might display error messages to indicate specific problems. Consult the manual for a detailed explanation of each error code and recommended solutions.

Low Battery: Replace the batteries.
Sensor Error: This could indicate a faulty sensor or a problem with the sensor connection. Try cleaning the sensor and checking the connections. If the error persists, the sensor might need replacement.
Out of Range: The vacuum level might be outside the gauge's measurement range.

When to Call a Professional: If you're unsure about the meaning of an error message or the recommended solutions don't work, contact a qualified technician for assistance.

Safety Precautions

Always prioritize safety when working with HVAC/R systems and vacuum gauges.

Wear Safety Glasses: Protect your eyes from debris and refrigerant.
Wear Gloves: Protect your hands from refrigerant and oil.
Work in a Well-Ventilated Area: Refrigerant vapors can be harmful.
Disconnect Power: Always disconnect power to the system before working on electrical components.
Handle Refrigerant Safely: Refer to EPA guidelines for proper refrigerant handling and disposal. Improper handling can harm the environment.
If you are not comfortable, or unsure of any procedure mentioned, contact a professional.

Preventative Maintenance

Regular maintenance can help prolong the life of your Yellow Jacket 69020 vacuum gauge and ensure accurate readings.

Clean the Gauge: Wipe the gauge with a clean, dry cloth after each use.
Store Properly: Store the gauge in a dry, protected environment.
Check Batteries Regularly: Replace batteries periodically to prevent corrosion.
Calibrate Annually: Consider professional calibration at least once a year to maintain accuracy.

Replacing Basic Parts (With Caution)

Some simple parts can be replaced by the homeowner, but proceed with caution and consult the manual:

Hoses: Vacuum hoses can wear out or become damaged over time. Replacing them is a straightforward process. Ensure you use hoses specifically designed for vacuum applications.
Fittings: Leaky or damaged fittings should be replaced promptly. Use the correct type and size of fittings for the connections.

When to Call a Professional: Replacing internal components, such as the sensor, or attempting to repair the circuitry should be left to qualified technicians. These repairs require specialized tools and knowledge.

When to Seek Professional Help

There are situations where attempting to repair the Yellow Jacket 69020 vacuum gauge yourself is not recommended. These include:

Internal Circuitry Problems: Any issues related to the gauge's internal electronics require specialized knowledge and tools.
Sensor Replacement: Replacing the vacuum sensor can be complex and requires careful calibration.
Gas Leaks: If you suspect a refrigerant leak, call a qualified HVAC technician immediately. Refrigerant leaks can be dangerous and require specialized equipment to repair safely.
Uncertainty: If you're unsure about any step in the troubleshooting process, it's always best to err on the side of caution and seek professional help.

By following these steps and understanding the limitations of DIY repair, you can effectively troubleshoot common issues with your Yellow Jacket 69020 Omni Digital Vacuum Gauge. Remember, safety is paramount, and knowing when to call a professional can save you time, money, and potential hazards.
